GEL Deep Cycle · Series RDG

RDG Series – Deep Gel

Deep cycling with full recovery from deep discharge.

The RDG Series is the ultimate 'all-terrain' battery, combining deep cycle endurance with the thermal resilience of gelled electrolyte (Nano-silica Gel). Classified by EUROBAT as 'High Performance', this series offers a 12-year design life, standing out for its ability to operate in extreme temperature environments and constant vibrations without the risk of thermal runaway. Its advanced engineering allows for total recovery after severe deep discharges, making it the most powerful commercial choice for off-grid renewable energy installations, marine use, and industrial environments where reliability is critical and maintenance must be non-existent.

Request a quote Models (19) PDF
RDG Series – Deep Gel
Models
19
Nominal Voltage
6 V, 12 V
Capacity
26–260 Ah
Design life
12 years
Warranty
2 years
EUROBAT
10-12 Years (High Performance)

Key features

  • Recovery: Superior performance after deep discharges
  • Stable: Low electrolyte stratification
  • Longevity: Excellent cycle life in harsh conditions
  • Gel Tech: Thixotropic gel electrolyte

Applications

  • Solar/Wind Energy Systems
    Energy storage for deep-cycle photovoltaic and wind systems, ensuring stable power supply even during low generation periods.
  • Electrical Substations
    Backup systems for control, switching, and protection equipment in high and medium voltage electrical substations.
  • Telecommunications and Base Stations
    Critical backup for network infrastructures and mobile base stations in remote locations with extreme weather conditions.
  • UPS and Data Centers

Standards and certifications

CE CERTIFIED ISO 9001 / 14001 IEC61427 IEC 60896-21/22 YD/T1360 BS6290 part 4

RDG series models

Each model links to its datasheet with discharge tables, dimensions and charge parameters. Rated capacity at 25 °C; C20 = 20-hour rate.

Model Nominal Voltage Capacity Length (mm) Width (mm) Height (mm) Weight (kgs)Terminal
RDG6-180 (formerly RKG6-180) 6 V 180 Ah (C10) 306 168 226 27.5F13
RDG6-200 (formerly RKG6-200) 6 V 200 Ah (C10) 306 168 226 30F13
RDG12-26 (formerly RKG12-26) 12 V 26 Ah (C10) 166 175 125 8.3F11
RDG12-40 (formerly RKG12-40) 12 V 40 Ah (C10) 197 165 170 13F14
RDG12-50 (formerly RKG12-50) 12 V 50 Ah (C10) 229 138 208 15.5F11
RDG12-55 (formerly RKG12-55) 12 V 55 Ah (C10) 229 138 208 17F11
RDG12-60 (formerly RKG12-60) 12 V 60 Ah (C10) 260 168 211 20F11
RDG12-70 (formerly RKG12-70) 12 V 70 Ah (C10) 260 166 211 22F11
RDG12-80 (formerly RKG12-80) 12 V 80 Ah (C10) 350 167 179 23F11
RDG12-90 (formerly RKG12-90) 12 V 90 Ah (C10) 306 169 208 26.5F14

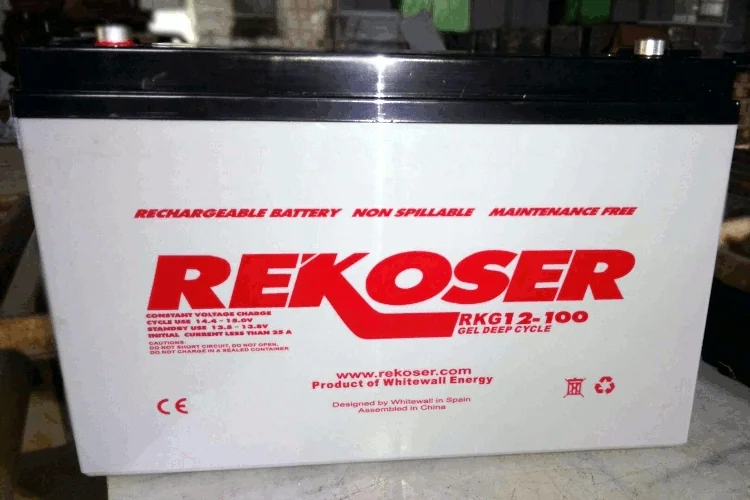

RDG12-100 (formerly RKG12-100) 12 V 100 Ah (C10) 328 171 214 30F14
RDG12-120 (formerly RKG12-120) 12 V 120 Ah (C10) 410 176 227 34F12
RDG12-135 (formerly RKG12-135) 12 V 135 Ah (C10) 342 172 273 42F12
RDG12-150 (formerly RKG12-150) 12 V 150 Ah (C10) 485 172 240 46F13
RDG12-180 (formerly RKG12-180) 12 V 180 Ah (C10) 530 207 218 53F12
RDG12-200 (formerly RKG12-200) 12 V 200 Ah (C10) 522 238 218 60F13
RDG12-225 (formerly RKG12-225) 12 V 225 Ah (C10) 522 238 218 64F13
RDG12-250 (formerly RKG12-250) 12 V 250 Ah (C10) 520 269 220 71F12
RDG12-260 (formerly RKG12-260) 12 V 260 Ah (C10) 520 269 220 72F13

Construction

ComponentMaterial
ContainerABS (Flame Retardant Optional)
CoverABS (Flame Retardant Optional)
ElectrolyteSulphuric acid
NegativeLead
PositiveLead dioxide
Safety ValveRubber
SealantEpoxy Resin
SeparatorFibre Glass
TerminalCopper

Downloads

RDG series datasheets (PDF)
