RDG6-200
SERIES RDG · DEEP GELDeep cycling with full recovery from deep discharge.
The RDG6-200 is a 6 V, 200 Ah (10-hour rate) GEL Deep Cycle lead-acid battery from the Rekoser Deep Gel series. It measures 306 × 168 × 226 mm and weighs 30 kg, with F13 terminals. It stores 1.2 kWh and delivers up to 1000 A. Deep cycling with full recovery from deep discharge. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKG6-200.
Main Advantages
- Recovery: Superior performance after deep discharges
- Stable: Low electrolyte stratification
- Longevity: Excellent cycle life in harsh conditions
- Gel Tech: Thixotropic gel electrolyte
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10) |
| Energy | 1200 Wh |
| Weight | 30 kg |
| Terminal | F13 |

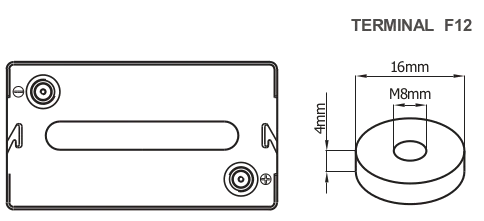

| Dimensions | 306 × 168 × 226 mm |
Main Applications
Quality Standards
RDG6-200
DEEP GELGraphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 299A | 271A | 249A | 177A | 115A | 51.7A | 34.6A | 19.5A | 10.3A |
| 5.40 V | 349A | 301A | 273A | 187A | 121A | 53.4A | 35.5A | 20A | 10.5A |
| 5.25 V | 395A | 331A | 293A | 196A | 125A | 54.5A | 36.4A | 20.4A | 10.7A |
| 5.10 V | 454A | 356A | 316A | 203A | 127A | 55.3A | 36.8A | 20.7A | 10.9A |
| 5.01 V | 509A | 392A | 334A | 211A | 130A | 56A | 37.1A | 20.9A | 11.2A |
| 4.80 V | 570A | 425A | 355A | 221A | 134A | 56.7A | 37.6A | 21.2A | 11.4A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 563W | 514W | 514W | 340W | 224W | 91.3W | 61.7W | 35W | 18.5W |
| 5.40 V | 646W | 564W | 517W | 357W | 232W | 93.6W | 62.7W | 35.8W | 18.9W |
| 5.25 V | 722W | 614W | 549W | 370W | 237W | 94.6W | 63.7W | 36.2W | 19.1W |
| 5.10 V | 820W | 653W | 585W | 380W | 240W | 95.3W | 64W | 36.4W | 19.3W |
| 5.01 V | 907W | 711W | 614W | 392W | 244W | 95.8W | 64.1W | 36.6W | 19.6W |
| 4.80 V | 1004W | 764W | 647W | 408W | 249W | 96.3W | 64.5W | 36.9W | 19.9W |
RDG6-200
DEEP GELSpecifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10), 210 Ah (C20) |
| Energy | 1200 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.2-7.4V (-3mV/C) Float use: 6.8-6.9V (-2mV/C) |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 3.1 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RDG6-200
DEEP GELQuick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RDG6-200 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 306 mm
- Width: 168 mm
- Height: 226 mm
- Total Height: 226 mm
- Weight: 30 kg
2. Terminal Configuration (F13)
- Terminals: Ensure your system's connectors match the F13 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.2-7.4V (-3mV/C)
- Float use: 6.8-6.9V (-2mV/C)
4. Safety and Storage
Maintenance: Sealed gel battery, maintenance-free and leak-proof.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Cycling: Recharge fully after every discharge; never leave it discharged.
Storage: Store charged, in a cool and dry place, and recharge periodically.
