RDG6-180
SERIES RDG · DEEP GELDeep cycling with full recovery from deep discharge.
The RDG6-180 is a 6 V, 180 Ah (10-hour rate) GEL Deep Cycle lead-acid battery from the Rekoser Deep Gel series. It measures 306 × 168 × 226 mm and weighs 27.5 kg, with F13 terminals. It stores 1.08 kWh and delivers up to 1000 A. Deep cycling with full recovery from deep discharge. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKG6-180.
Main Advantages
- Recovery: Superior performance after deep discharges
- Stable: Low electrolyte stratification
- Longevity: Excellent cycle life in harsh conditions
- Gel Tech: Thixotropic gel electrolyte
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 180 Ah (C10) |
| Energy | 1080 Wh |
| Weight | 27.5 kg |
| Terminal | F13 |

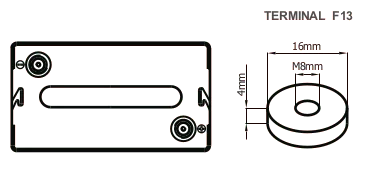

| Dimensions | 306 × 168 × 226 mm |
Main Applications
Quality Standards
RDG6-180
DEEP GELGraphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 283A | 254A | 231A | 162A | 105A | 46.5A | 31.2A | 17.5A | 9.23A |
| 5.40 V | 331A | 282A | 254A | 172A | 110A | 48.1A | 31.9A | 18A | 9.45A |
| 5.25 V | 374A | 310A | 272A | 180A | 113A | 49A | 32.7A | 18.4A | 9.63A |
| 5.10 V | 430A | 334A | 293A | 186A | 116A | 49.8A | 33.1A | 18.6A | 9.82A |
| 5.01 V | 482A | 367A | 310A | 194A | 118A | 50.4A | 33.4A | 18.8A | 10A |
| 4.80 V | 540A | 398A | 329A | 203A | 122A | 51A | 33.9A | 19.1A | 10.3A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 533W | 482W | 442W | 313W | 203W | 91.3W | 61.7W | 35W | 18.5W |
| 5.40 V | 612W | 529W | 480W | 328W | 211W | 93.6W | 62.7W | 35.8W | 18.9W |
| 5.25 V | 684W | 575W | 510W | 340W | 216W | 94.6W | 63.7W | 36.2W | 19.1W |
| 5.10 V | 776W | 612W | 543W | 349W | 219W | 95.3W | 64W | 36.4W | 19.3W |
| 5.01 V | 859W | 667W | 570W | 360W | 222W | 95.8W | 64.1W | 36.6W | 19.6W |
| 4.80 V | 951W | 716W | 600W | 375W | 227W | 96.3W | 64.5W | 36.9W | 19.9W |
RDG6-180
DEEP GELSpecifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 180 Ah (C10), 189 Ah (C20) |
| Energy | 1080 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.2-7.4V (-3mV/C) Float use: 6.8-6.9V (-2mV/C) |
| Max. Charge Current | 45 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 3.2 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RDG6-180
DEEP GELQuick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RDG6-180 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 306 mm
- Width: 168 mm
- Height: 226 mm
- Total Height: 226 mm
- Weight: 27.5 kg
2. Terminal Configuration (F13)
- Terminals: Ensure your system's connectors match the F13 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.2-7.4V (-3mV/C)
- Float use: 6.8-6.9V (-2mV/C)
4. Safety and Storage
Maintenance: Sealed gel battery, maintenance-free and leak-proof.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Cycling: Recharge fully after every discharge; never leave it discharged.
Storage: Store charged, in a cool and dry place, and recharge periodically.
