GEL Deep Cycle · Series RXG

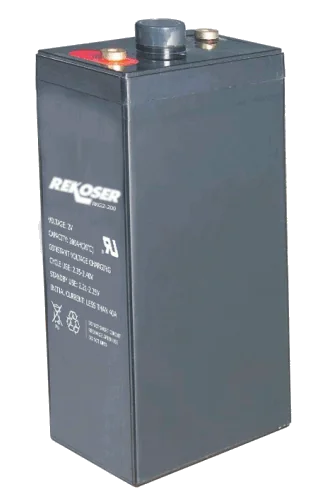

RXG Series – eXtended Gel (2V)

Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure.

The RXG (eXtended Gel) Series represents the pinnacle of gas recombination technology in a gelled state for industrial energy storage. Engineered to meet the strictest Eurobat "Very Long Life" Glory standards, this range delivers a design life exceeding 12 years in float applications. Its advanced extended gel chemical formulation provides optimized internal resistance, virtually eliminating acid stratification while ensuring exceptional thermal stability even in harsh, unconditioned environments.

Request a quote Models (12) PDF
RXG Series – eXtended Gel (2V)
Models
12
Nominal Voltage
2 V
Capacity
150–3000 Ah
Design life
15 years
Warranty
2 years
EUROBAT
>12 Years (Very Long Life)

Key features

  • Recovery: Superior performance after deep discharges
  • Stable: Low electrolyte stratification thanks to eXtended Gel technology
  • Longevity: Excellent cyclic life in harsh conditions (Very Long Life >12 years design life)
  • Gel Tech: Premium thixotropic gel electrolyte with high thermal stability

Applications

  • Solar/Wind Energy Systems
    Energy storage for deep-cycle photovoltaic and wind systems, ensuring stable power supply even during low generation periods.
  • Electrical Substations
    Backup systems for control, switching, and protection equipment in high and medium voltage electrical substations.
  • Telecommunications and Base Stations
    Critical backup for network infrastructures and mobile base stations in remote locations with extreme weather conditions.
  • UPS and Data Centers

Standards and certifications

CE CERTIFIED ISO 9001 / 14001 IEC61427 IEC 60896-21/22 YD/T1360 BS6290 part 4

RXG series models

Each model links to its datasheet with discharge tables, dimensions and charge parameters. Rated capacity at 25 °C; C20 = 20-hour rate.

Model Nominal Voltage Capacity Length (mm) Width (mm) Height (mm) Weight (kgs)Terminal
RXG2-150 (formerly RKG2-150) 2 V 150 Ah (C10) 172 102 205 8F10
RXG2-200 (formerly RKG2-200) 2 V 200 Ah (C10) 173 111 330 13F10
RXG2-250 (formerly RKG2-250) 2 V 250 Ah (C10) 173 111 330 13F10
RXG2-300 (formerly RKG2-300) 2 V 300 Ah (C10) 171 151 330 18.5F10
RXG2-400 (formerly RKG2-400) 2 V 400 Ah (C10) 210 176 330 25.5F10
RXG2-600 (formerly RKG2-600) 2 V 600 Ah (C10) 302 175 330 35.5F10
RXG2-800 (formerly RKG2-800) 2 V 800 Ah (C10) 410 175 330 51F10
RXG2-1000 (formerly RKG2-1000) 2 V 1000 Ah (C10) 475 175 330 61F10
RXG2-1200 (formerly RKG2-1200) 2 V 1200 Ah (C10) 475 175 330 66F10
RXG2-1500 (formerly RKG2-1500) 2 V 1500 Ah (C10) 400 350 345 93F10
RXG2-2500 (formerly RKG2-2500) 2 V 2500 Ah (C10) 490 350 345 138F10
RXG2-3000 (formerly RKG2-3000) 2 V 3000 Ah (C10) 710 350 345 180F10

Construction

ComponentMaterial
ContainerABS (Flame Retardant Optional)
CoverABS (Flame Retardant Optional)
ElectrolyteSulphuric acid
NegativeLead
PositiveLead dioxide
Safety ValveRubber
SealantEpoxy Resin
SeparatorFibre Glass
TerminalCopper

Downloads

RXG series datasheets (PDF)
