RXG2-3000
SERIES RXG · EXTENDED GEL (2V)Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure.

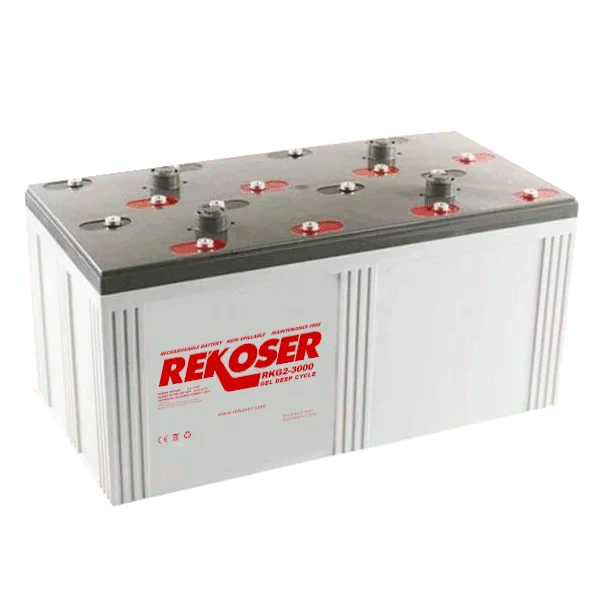

The RXG2-3000 is a 2 V, 3000 Ah (10-hour rate) GEL Deep Cycle lead-acid battery from the Rekoser eXtended Gel (2V) series. It measures 710 × 350 × 345 mm and weighs 180 kg, with F10 terminals. It stores 6 kWh and delivers up to 1600 A. Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKG2-3000.
Main Advantages
- Recovery: Superior performance after deep discharges
- Stable: Low electrolyte stratification thanks to eXtended Gel technology
- Longevity: Excellent cyclic life in harsh conditions (Very Long Life >12 years design life)
- Gel Tech: Premium thixotropic gel electrolyte with high thermal stability
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 3000 Ah (C10) |
| Energy | 6000 Wh |
| Weight | 180 kg |
| Terminal | F10 |
| Dimensions | 710 × 350 × 345 mm |
Main Applications
Quality Standards
RXG2-3000
EXTENDED GEL (2V)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 2411A | 1642A | 742A | 518A | 300A | 158A |
| 1.75 V | 2503A | 1694A | 765A | 534A | 302A | 159A |
| 1.70 V | 2565A | 1728A | 770A | 538A | 304A | 160A |
| 1.65 V | 2646A | 1773A | 776A | 541A | 305A | 160A |
| 1.60 V | 2700A | 1800A | 780A | 545A | 305A | 160A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 4509W | 3119W | 1454W | 1020W | 597W | 315W |
| 1.75 V | 4680W | 3218W | 1499W | 1052W | 601W | 317W |
| 1.70 V | 4797W | 3283W | 1510W | 1059W | 605W | 319W |
| 1.65 V | 4948W | 3369W | 1520W | 1067W | 607W | 320W |
| 1.60 V | 5049W | 3420W | 1529W | 1073W | 608W | 321W |
RXG2-3000
EXTENDED GEL (2V)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 3000 Ah (C10) |
| Energy | 6000 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/C) Float use: 2.25-2.29V (-3mV/C) |
| Max. Charge Current | 600 A |
| Max. Discharge Current | 1600 A |
| Internal Resistance | 0.12 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RXG2-3000
EXTENDED GEL (2V)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RXG2-3000 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 710 mm
- Width: 350 mm
- Height: 345 mm
- Total Height: 382 mm
- Weight: 180 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/C)
- Float use: 2.25-2.29V (-3mV/C)
4. Safety and Storage
Maintenance: Sealed gel battery, maintenance-free and leak-proof.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Cycling: Recharge fully after every discharge; never leave it discharged.
Storage: Store charged, in a cool and dry place, and recharge periodically.
