RXG2-250
SERIES RXG · EXTENDED GEL (2V)Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure.
The RXG2-250 is a 2 V, 250 Ah (10-hour rate) GEL Deep Cycle lead-acid battery from the Rekoser eXtended Gel (2V) series. It measures 173 × 111 × 330 mm and weighs 13 kg, with F10 terminals. It stores 500 Wh and delivers up to 1000 A. Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKG2-250.
Main Advantages
- Recovery: Superior performance after deep discharges
- Stable: Low electrolyte stratification thanks to eXtended Gel technology
- Longevity: Excellent cyclic life in harsh conditions (Very Long Life >12 years design life)
- Gel Tech: Premium thixotropic gel electrolyte with high thermal stability
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 250 Ah (C10) |
| Energy | 500 Wh |
| Weight | 13 kg |
| Terminal | F10 |
| Dimensions | 173 × 111 × 330 mm |
Main Applications
Quality Standards
RXG2-250
EXTENDED GEL (2V)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 201A | 137A | 61.8A | 43.2A | 25A | 13.1A |
| 1.75 V | 209A | 141A | 63.8A | 44.5A | 25.2A | 13.2A |
| 1.70 V | 214A | 144A | 64.2A | 44.8A | 25.3A | 13.3A |
| 1.65 V | 221A | 148A | 64.6A | 45.1A | 25.4A | 13.3A |
| 1.60 V | 225A | 150A | 65A | 45.4A | 25.5A | 13.4A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 376W | 260W | 121W | 85W | 49.8W | 26.3W |
| 1.75 V | 390W | 268W | 125W | 87.7W | 50.1W | 26.4W |
| 1.70 V | 400W | 274W | 126W | 88.3W | 50.4W | 26.6W |
| 1.65 V | 412W | 281W | 127W | 88.9W | 50.5W | 26.7W |
| 1.60 V | 421W | 285W | 127W | 89.4W | 50.6W | 26.7W |
RXG2-250
EXTENDED GEL (2V)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 250 Ah (C10) |
| Energy | 500 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/C) Float use: 2.25-2.29V (-3mV/C) |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RXG2-250
EXTENDED GEL (2V)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RXG2-250 battery, follow these assembly and connection guidelines.

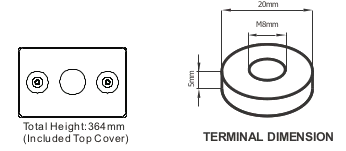

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 173 mm
- Width: 111 mm
- Height: 330 mm
- Total Height: 364 mm
- Weight: 13 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/C)
- Float use: 2.25-2.29V (-3mV/C)
4. Safety and Storage
Maintenance: Sealed gel battery, maintenance-free and leak-proof.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Cycling: Recharge fully after every discharge; never leave it discharged.
Storage: Store charged, in a cool and dry place, and recharge periodically.
