RXG2-600
SERIES RXG · EXTENDED GEL (2V)Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure.

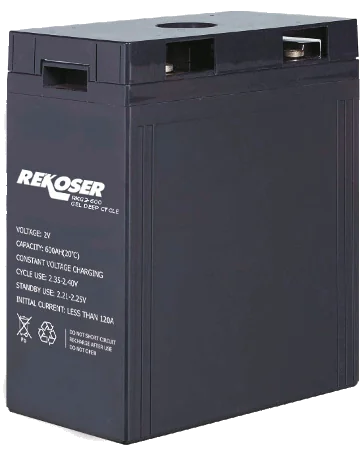

The RXG2-600 is a 2 V, 600 Ah (10-hour rate) GEL Deep Cycle lead-acid battery from the Rekoser eXtended Gel (2V) series. It measures 302 × 175 × 330 mm and weighs 35.5 kg, with F10 terminals. It stores 1.2 kWh and delivers up to 3000 A. Maximum GEL longevity (2V). Deep-cycle endurance for critical infrastructure. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKG2-600.
Main Advantages
- Recovery: Superior performance after deep discharges
- Stable: Low electrolyte stratification thanks to eXtended Gel technology
- Longevity: Excellent cyclic life in harsh conditions (Very Long Life >12 years design life)
- Gel Tech: Premium thixotropic gel electrolyte with high thermal stability
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 600 Ah (C10) |
| Energy | 1200 Wh |
| Weight | 35.5 kg |
| Terminal | F10 |
| Dimensions | 302 × 175 × 330 mm |
Main Applications
Quality Standards
RXG2-600
EXTENDED GEL (2V)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 2HR | 3HR | 5HR | 6HR | 8HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 1.80 V | 482A | 328A | 207A | 148A | 104A | 89A | 69.8A | 60A | 31.5A |
| 1.75 V | 501A | 339A | 213A | 153A | 107A | 91.8A | 72A | 60.4A | 31.7A |
| 1.70 V | 513A | 346A | 216A | 154A | 108A | 92.4A | 72.5A | 60.8A | 31.9A |
| 1.65 V | 529A | 355A | 218A | 155A | 108A | 93.1A | 73A | 61A | 32A |
| 1.60 V | 540A | 360A | 219A | 156A | 109A | 93.6A | 73.4A | 61.1A | 32.1A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 2HR | 3HR | 5HR | 6HR | 8HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 1.80 V | 902W | 624W | 400W | 291W | 204W | 175W | 139W | 119W | 63W |
| 1.75 V | 936W | 644W | 411W | 300W | 210W | 181W | 143W | 120W | 63.4W |
| 1.70 V | 959W | 657W | 417W | 302W | 212W | 182W | 144W | 121W | 63.8W |
| 1.65 V | 990W | 674W | 421W | 304W | 213W | 183W | 145W | 121W | 64W |
| 1.60 V | 1010W | 684W | 423W | 306W | 215W | 184W | 146W | 122W | 64.1W |
RXG2-600
EXTENDED GEL (2V)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 600 Ah (C10) |
| Energy | 1200 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV / o C/ cell) Float use: 2.25-2.29V (-3mV / o C/ cell) |
| Max. Charge Current | 120 A |
| Max. Discharge Current | 3000 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RXG2-600
EXTENDED GEL (2V)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RXG2-600 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 302 mm
- Width: 175 mm
- Height: 330 mm
- Total Height: 367 mm
- Weight: 35.5 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV / o C/ cell)
- Float use: 2.25-2.29V (-3mV / o C/ cell)
4. Safety and Storage
Maintenance: Sealed gel battery, maintenance-free and leak-proof.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Cycling: Recharge fully after every discharge; never leave it discharged.
Storage: Store charged, in a cool and dry place, and recharge periodically.
