RDC6-235
SERIES RDC · DEEP CYCLE (AGM)Endurance for frequent charge/discharge cycling.

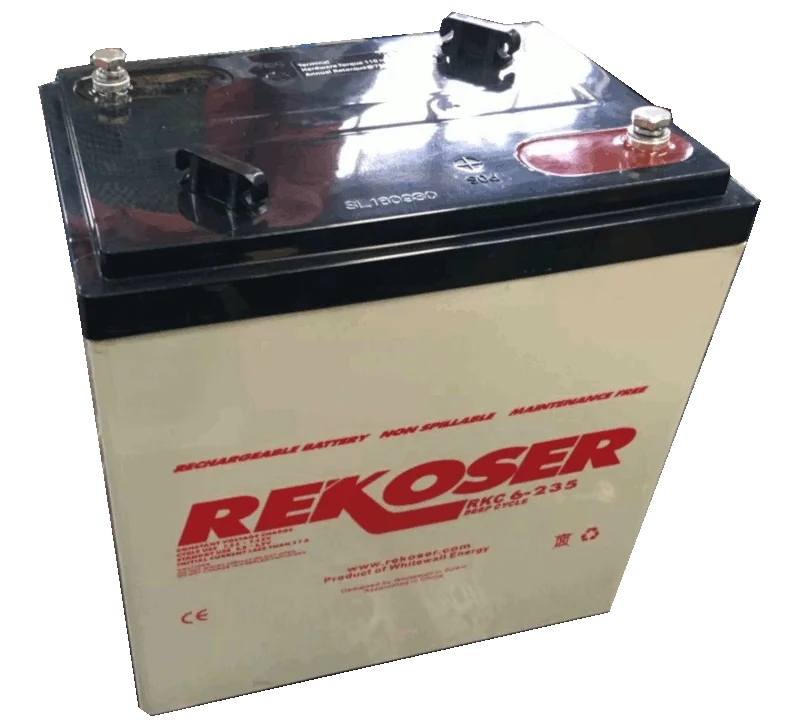

The RDC6-235 is a 6 V, 235 Ah (10-hour rate) AGM Deep Cycle lead-acid battery from the Rekoser Deep Cycle (AGM) series. It measures 260 × 180 × 272 mm and weighs 36 kg, with F12 terminals. It stores 1.41 kWh and delivers up to 1300 A. Endurance for frequent charge/discharge cycling. Typical applications: Solar/Wind Energy Systems and Light Electric Vehicles.
Formerly RKC6-235.
Main Advantages
- Cycling: Optimized for more than 400 cycles at 80% DOD
- Materials: Specialized active material and thick plates
- Versatility: Suitable for both motive and stationary use
- Efficiency: High recharge acceptance
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 235 Ah (C10) |
| Energy | 1410 Wh |
| Weight | 36 kg |
| Terminal | F12 |
| Dimensions | 260 × 180 × 272 mm |
Main Applications
Quality Standards
RDC6-235
DEEP CYCLE (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|
| 4.80 V | 493A | 391A | 224A | 145A | 68.3A | 44.3A | 23.8A | 13.07A |
| 4.95 V | 465A | 369A | 235A | 143A | 66A | 43.9A | 23.8A | 13.07A |
| 5.10 V | 437A | 346A | 226A | 141A | 65.2A | 43.6A | 23.7A | 12.95A |
| 5.25 V | 406A | 323A | 217A | 135A | 64.9A | 43A | 23.7A | 12.82A |
| 5.40 V | 372A | 298A | 205A | 131A | 62.1A | 42.3A | 23.5A | 12.7A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|
| 4.80 V | 881W | 656W | 429W | 307W | 253W | 164W | 124W | 82.1W |
| 4.95 V | 771W | 634W | 413W | 301W | 250W | 162W | 123W | 81.4W |
| 5.10 V | 730W | 614W | 397W | 295W | 246W | 158W | 121W | 80.4W |
| 5.25 V | 687W | 593W | 381W | 288W | 244W | 155W | 119W | 80.1W |
| 5.40 V | 653W | 558W | 365W | 282W | 242W | 150W | 118W | 79.4W |
RDC6-235
DEEP CYCLE (AGM)Specifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 235 Ah (C10) |
| Energy | 1410 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A Float use: 13.6-13.8V (-20mV/C) |
| Max. Charge Current | 47 A |
| Max. Discharge Current | 1300 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RDC6-235
DEEP CYCLE (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RDC6-235 battery, follow these assembly and connection guidelines.

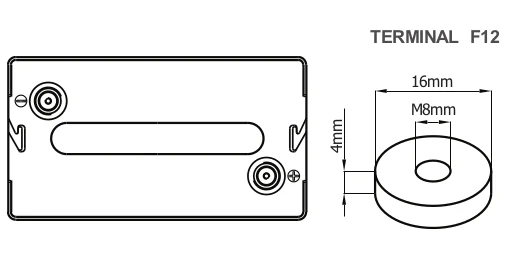

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 260 mm
- Width: 180 mm
- Height: 272 mm
- Total Height: 272 mm
- Weight: 36 kg
2. Terminal Configuration (F12)
- Terminals: Ensure your system's connectors match the F12 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A
- Float use: 13.6-13.8V (-20mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Cycling: Recharge fully after every discharge; never leave it discharged.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
