RDC6-300
SERIES RDC · DEEP CYCLE (AGM)Endurance for frequent charge/discharge cycling.
The RDC6-300 is a 6 V, 300 Ah (10-hour rate) AGM Deep Cycle lead-acid battery from the Rekoser Deep Cycle (AGM) series. It measures 295 × 178 × 350 mm and weighs 46 kg, with F13 terminals. It stores 1.8 kWh and delivers up to 1000 A. Endurance for frequent charge/discharge cycling. Typical applications: Solar/Wind Energy Systems and Light Electric Vehicles.
Formerly RKC6-300.
Main Advantages
- Cycling: Optimized for more than 400 cycles at 80% DOD
- Materials: Specialized active material and thick plates
- Versatility: Suitable for both motive and stationary use
- Efficiency: High recharge acceptance
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 300 Ah (C10) |
| Energy | 1800 Wh |
| Weight | 46 kg |
| Terminal | F13 |

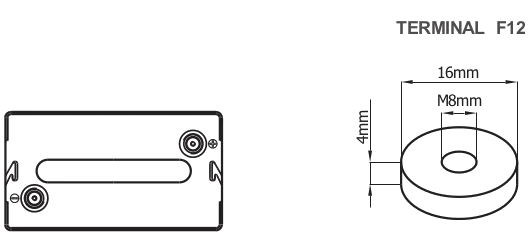

| Dimensions | 295 × 178 × 350 mm |
Main Applications
Quality Standards
RDC6-300
DEEP CYCLE (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 448A | 406A | 374A | 265A | 173A | 77.5A | 52A | 29.2A | 15.4A |
| 5.40 V | 523A | 451A | 410A | 281A | 181A | 80.1A | 53.2A | 30A | 15.7A |
| 5.25 V | 592A | 496A | 440A | 294A | 187A | 81.7A | 54.5A | 30.6A | 16.1A |
| 5.10 V | 681A | 534A | 474A | 305A | 191A | 83A | 55.2A | 31A | 16.4A |
| 5.01 V | 763A | 587A | 501A | 316A | 196A | 84A | 55.7A | 31.4A | 16.7A |
| 4.80 V | 855A | 638A | 532A | 331A | 201A | 85A | 56.5A | 31.8A | 17.1A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 844W | 771W | 714W | 511W | 336W | 152W | 103W | 58.4W | 30.9W |
| 5.40 V | 970W | 846W | 776W | 535W | 347W | 156W | 104W | 59.6W | 31.4W |
| 5.25 V | 1082W | 921W | 824W | 555W | 356W | 158W | 106W | 60.3W | 31.8W |
| 5.10 V | 1229W | 980W | 878W | 570W | 361W | 159W | 107W | 60.7W | 32.2W |
| 5.01 V | 1361W | 1067W | 921W | 588W | 367W | 160W | 108W | 61W | 32.7VW |
| 4.80 V | 1506W | 1146W | 970W | 612W | 374W | 161W | 110W | 61.4W | 33.2W |
RDC6-300
DEEP CYCLE (AGM)Specifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 300 Ah (C10), 314 Ah (C20) |
| Energy | 1800 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.2-7.4V (-30mV/C), max. Current 2.1A Float use: 6.8-6.9V (-20mV/C) |
| Max. Charge Current | 90 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RDC6-300
DEEP CYCLE (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RDC6-300 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 295 mm
- Width: 178 mm
- Height: 350 mm
- Total Height: 350 mm
- Weight: 46 kg
2. Terminal Configuration (F13)
- Terminals: Ensure your system's connectors match the F13 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.2-7.4V (-30mV/C), max. Current 2.1A
- Float use: 6.8-6.9V (-20mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Cycling: Recharge fully after every discharge; never leave it discharged.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
