ROV12-100
SERIES ROV · OPZV (TUBULAR GEL)The best of lead. Maintenance-free with extreme service life.

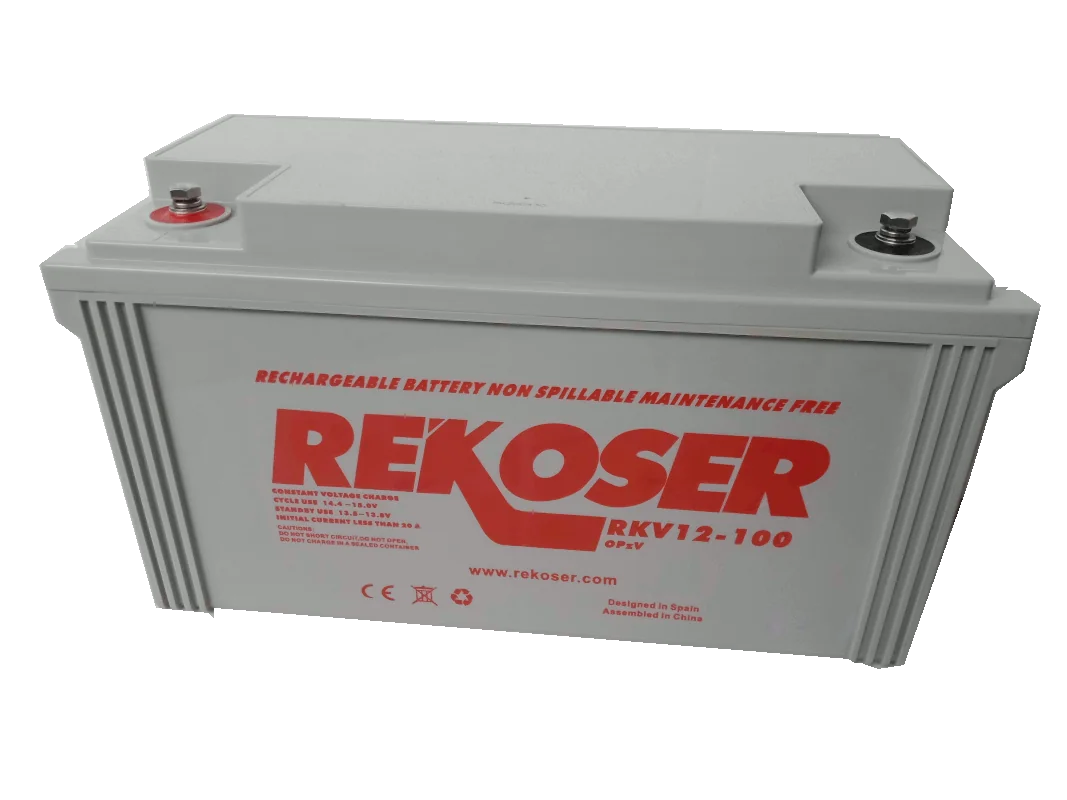

The ROV12-100 is a 12 V, 100 Ah (10-hour rate) OPzV lead-acid battery from the Rekoser OPzV (Tubular Gel) series. It measures 409 × 176 × 223 mm and weighs 35 kg, with F10 terminals. It stores 1.2 kWh and delivers up to 625 A. The best of lead. Maintenance-free with extreme service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKV12-100.
Main Advantages
- Combination: Tubular plates with gel electrolyte
- Maintenance: Zero maintenance required
- Durability: 20 years design life at 20ºC
- Install: Can be installed horizontally in racks
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 100 Ah (C10) |
| Energy | 1200 Wh |
| Weight | 35 kg |
| Terminal | F10 |
| Dimensions | 409 × 176 × 223 mm |
Main Applications
Quality Standards
ROV12-100
OPZV (TUBULAR GEL)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 10.8 V | 102A | 101A | 92.9A | 74.1A | 48.4A | 24.1A | 13.3A | 10A | 5.3A |
| 10.5 V | 109A | 107A | 98.1A | 76.9A | 50A | 24.8A | 17.8A | 10.1A | 5.34A |
| 10.2 V | 113A | 112A | 102A | 78.9A | 51A | 25A | 17.9A | 10.1A | 5.37A |
| 9.9 V | 118A | 116A | 105A | 81.3A | 52.3A | 25.1A | 18A | 10.2A | 5.38A |
| 9.6 V | 122A | 120A | 108A | 83A | 53.1A | 25.3A | 18.2A | 10.2A | 5.4A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 10.8 V | 179W | 181W | 170W | 139W | 92W | 47.1W | 34W | 19.9W | 10.6W |
| 10.5 V | 190W | 192W | 179W | 144W | 94.9W | 48.6W | 35.1W | 20W | 10.7W |
| 10.2 V | 199W | 201W | 186W | 147W | 96.9W | 48.9W | 35.3W | 20.2W | 10.7W |
| 9.9 V | 207W | 210W | 193W | 152W | 99.4W | 49.3W | 35.6W | 20.2W | 10.8W |
| 9.6 V | 214W | 216W | 198W | 155W | 101W | 49.6W | 35.8W | 20.3W | 10.8W |
ROV12-100
OPZV (TUBULAR GEL)Specifications
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 100 Ah (C10) |
| Energy | 1200 Wh |
| Cell number | 6 |
| Charge Voltage (25°C) | Cycle use: 13.80-14.10V (-30mV/ºC/cell) Float use: 13.50-13.80V (-18mV/ºC/cell) |
| Max. Charge Current | 20 A |
| Max. Discharge Current | 625 A |
| Internal Resistance | 6.3 mΩ |
| Self Discharge | 2 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS(UL94-V0 optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Immobilized Gel |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROV12-100
OPZV (TUBULAR GEL)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROV12-100 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 409 mm
- Width: 176 mm
- Height: 223 mm
- Total Height: 223 mm
- Weight: 35 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 13.80-14.10V (-30mV/ºC/cell)
- Float use: 13.50-13.80V (-18mV/ºC/cell)
4. Safety and Storage
Maintenance: Immobilised gel and tubular plate: sealed, no water topping up.
Position: Upright, or horizontal on a rack.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
