ROS2-200
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.

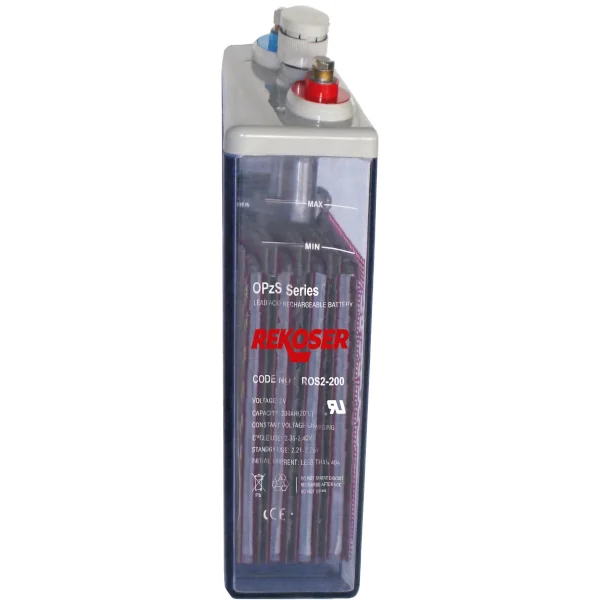

The ROS2-200 is a 2 V, 200 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 103 × 206 × 354 mm and weighs 13 kg, with IT-M8-CU-20-7 terminals. It stores 400 Wh and delivers up to 1250 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKS2-200.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10) |
| Energy | 400 Wh |
| Weight | 13 kg |
| Terminal | IT-M8-CU-20-7 |
| Dimensions | 103 × 206 × 354 mm |
Main Applications
Quality Standards
ROS2-200
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 79.8A | 72.6A | 66A | 64.6A | 59.8A | 37.8A | 27.8A | 18.2A | 10A | 2.54A |
| 1.85 V | 86.2A | 82.6A | 81.2A | 80.8A | 68A | 41.8A | 32.6A | 19A | 10.5A | 2.7A |
| 1.80 V | 138A | 132A | 129A | 111A | 87.4A | 51.2A | 34.6A | 20A | 11A | 2.8A |
| 1.75 V | 165A | 158A | 154A | 127A | 97.4A | 53A | 35.6A | 20.6A | 11.6A | 2.86A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 155W | 141W | 126W | 122W | 115W | 82.2W | 59.6W | 37.6W | 20.2W | 5.5W |
| 1.85 V | 167W | 160W | 156W | 152W | 131W | 86W | 66.2W | 40.8W | 22W | 5.73W |
| 1.80 V | 267W | 256W | 220W | 203W | 171W | 109W | 75.6W | 44W | 22.8W | 5.88W |
| 1.75 V | 320W | 307W | 225W | 205W | 173W | 116W | 79W | 45.8W | 23.4W | 5.93W |
ROS2-200
OPZS (FLOODED)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10) |
| Energy | 400 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.21-2.25V (-3mV/ºC/cell) |
| Max. Charge Current | 40 A |
| Max. Discharge Current | 1250 A |
| Internal Resistance | 0.35 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS2-200
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS2-200 battery, follow these assembly and connection guidelines.

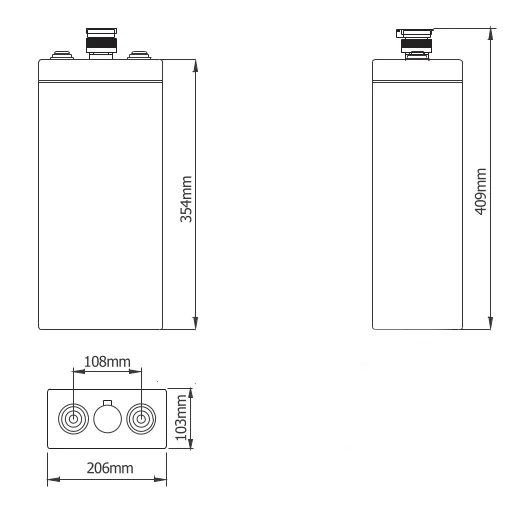

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 103 mm
- Width: 206 mm
- Height: 354 mm
- Total Height: 409 mm
- Weight: 13 kg
2. Terminal Configuration (IT-M8-CU-20-7)
- Terminals: Ensure your system's connectors match the IT-M8-CU-20-7 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.21-2.25V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
