ROS2-300
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.

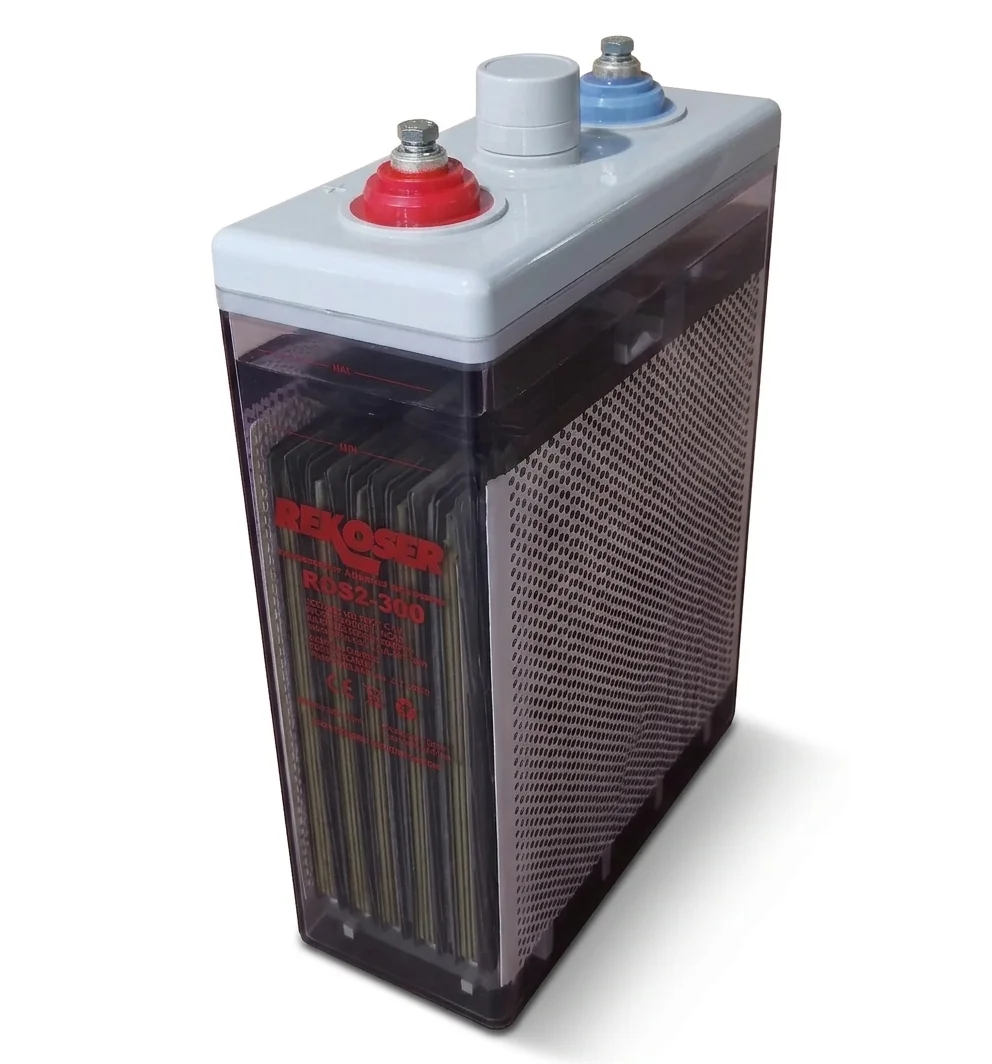

The ROS2-300 is a 2 V, 300 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 145 × 206 × 354 mm and weighs 17.5 kg, with F10 terminals. It stores 600 Wh and delivers up to 1500 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKS2-300.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 300 Ah (C10) |
| Energy | 600 Wh |
| Weight | 17.5 kg |
| Terminal | F10 |
| Dimensions | 145 × 206 × 354 mm |
Main Applications
Quality Standards
ROS2-300
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.85 V | 208A | 144A | 69.6A | 49.5A | 28.5A | 15.5A |
| 1.80 V | 220A | 154A | 75.1A | 52.5A | 30A | 16.2A |
| 1.75 V | 228A | 158A | 76.5A | 54.2A | 30.3A | 16.4A |
| 1.70 V | 236A | 162A | 77.4A | 54.7A | 30.5A | 16.6A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.85 V | 383W | 270W | 135W | 96W | 55.5W | 30W |
| 1.80 V | 412W | 293W | 148W | 103W | 59.7W | 32.4W |
| 1.75 V | 426W | 300W | 150W | 106W | 60W | 32.7W |
| 1.70 V | 440W | 306W | 152W | 107W | 60.8W | 33W |
ROS2-300
OPZS (FLOODED)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 300 Ah (C10) |
| Energy | 600 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.21-2.25V (-3mV/ºC/cell) |
| Max. Charge Current | 60 A |
| Max. Discharge Current | 1500 A |
| Internal Resistance | 0.9 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS2-300
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS2-300 battery, follow these assembly and connection guidelines.

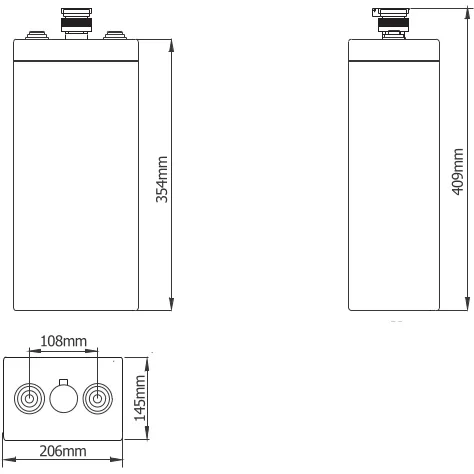

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 145 mm
- Width: 206 mm
- Height: 354 mm
- Total Height: 409 mm
- Weight: 17.5 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.21-2.25V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
