ROS2-150
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.
The ROS2-150 is a 2 V, 150 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 103 × 206 × 354 mm and weighs 10.5 kg, with F10 terminals. It stores 300 Wh and delivers up to 1000 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKS2-150.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 150 Ah (C10) |
| Energy | 300 Wh |
| Weight | 10.5 kg |
| Terminal | F10 |
| Dimensions | 103 × 206 × 354 mm |
Main Applications
Quality Standards
ROS2-150
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 59.9A | 54.5A | 49.5A | 48.5A | 44.9A | 28.4A | 20.9A | 13.7A | 7.51A | 1.91A |
| 1.85 V | 64.7A | 62A | 60.9A | 60.6A | 51A | 31.4A | 24.5A | 14.3A | 7.84A | 2.03A |
| 1.80 V | 103A | 99A | 96.9A | 83.4A | 65.6A | 38.4A | 26A | 15A | 8.25A | 2.1A |
| 1.75 V | 124A | 119A | 115A | 95.4A | 73.1A | 39.8A | 26.7A | 15.5A | 8.66A | 2.15A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 116W | 106W | 94.8W | 91.7W | 86.3W | 61.7W | 44.7W | 28.2W | 15.1W | 4.13W |
| 1.85 V | 125W | 120W | 117W | 114W | 98.1W | 64.5W | 49.7W | 30.6W | 16.5W | 4.3W |
| 1.80 V | 200W | 192W | 165W | 152W | 129W | 82.1W | 56.7W | 33W | 17.1W | 4.41W |
| 1.75 V | 240W | 231W | 169W | 153W | 130W | 86.9W | 59.3W | 34.4W | 17.5W | 4.45W |
ROS2-150
OPZS (FLOODED)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 150 Ah (C10) |
| Energy | 300 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.21-2.25V (-3mV/ºC/cell) |
| Max. Charge Current | 30 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 0.35 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS2-150
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS2-150 battery, follow these assembly and connection guidelines.

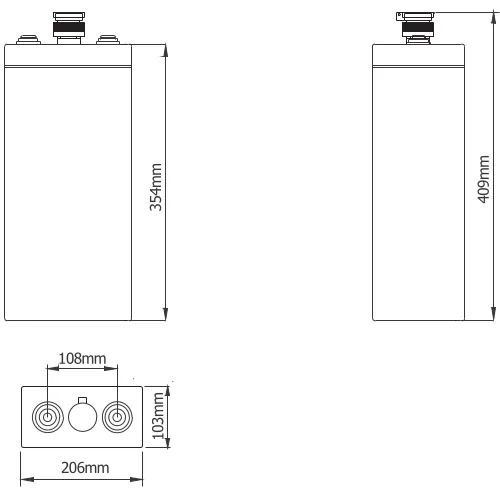

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 103 mm
- Width: 206 mm
- Height: 354 mm
- Total Height: 409 mm
- Weight: 10.5 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.21-2.25V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
