ROS2-1200
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.

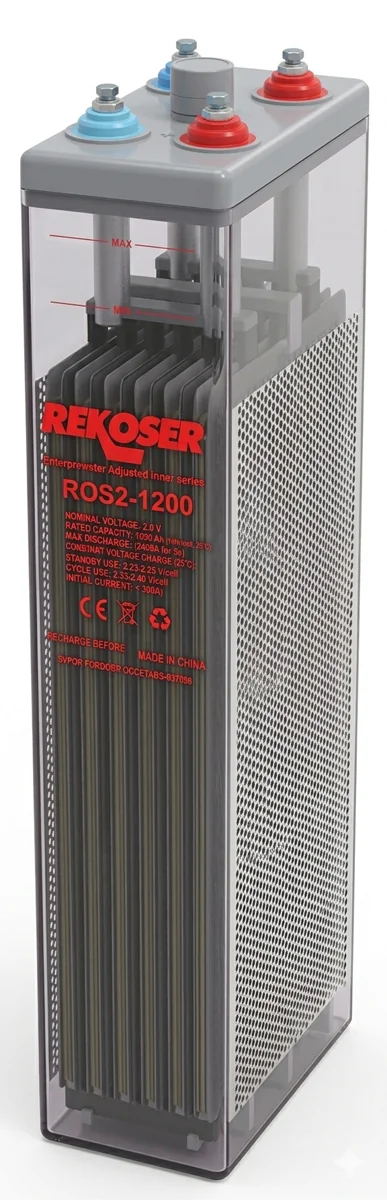

The ROS2-1200 is a 2 V, 1200 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 275 × 210 × 645 mm and weighs 61.5 kg, with F10 terminals. It stores 2.4 kWh and delivers up to 2500 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKS2-1200.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 1200 Ah (C10) |
| Energy | 2400 Wh |
| Weight | 61.5 kg |
| Terminal | F10 |
| Dimensions | 275 × 210 × 645 mm |
Main Applications
Quality Standards
ROS2-1200
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 479A | 436A | 396A | 388A | 359A | 227A | 167A | 109A | 60.1A | 15.2A |
| 1.85 V | 517A | 496A | 487A | 485A | 408A | 251A | 196A | 114A | 62.7A | 16.2A |
| 1.80 V | 826A | 792A | 775A | 667A | 524A | 307A | 208A | 120A | 66A | 16.8A |
| 1.75 V | 991A | 950A | 922A | 763A | 584A | 318A | 214A | 124A | 69.3A | 17.2A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR | 100HR |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.90 V | 929W | 845W | 758W | 733W | 690W | 493W | 358W | 226W | 121W | 33W |
| 1.85 V | 1003W | 962W | 935W | 911W | 785W | 516W | 397W | 245W | 132W | 34.4W |
| 1.80 V | 1602W | 1537W | 1318W | 1219W | 1028W | 656W | 454W | 264W | 137W | 35.3W |
| 1.75 V | 1922W | 1844W | 1351W | 1228W | 1037W | 695W | 474W | 275W | 140W | 35.6W |
ROS2-1200
OPZS (FLOODED)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 1200 Ah (C10), 1320 Ah (C20) |
| Energy | 2400 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.21-2.25V (-3mV/ºC/cell) |
| Max. Charge Current | 240 A |
| Max. Discharge Current | 2500 A |
| Internal Resistance | 0.35 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS2-1200
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS2-1200 battery, follow these assembly and connection guidelines.

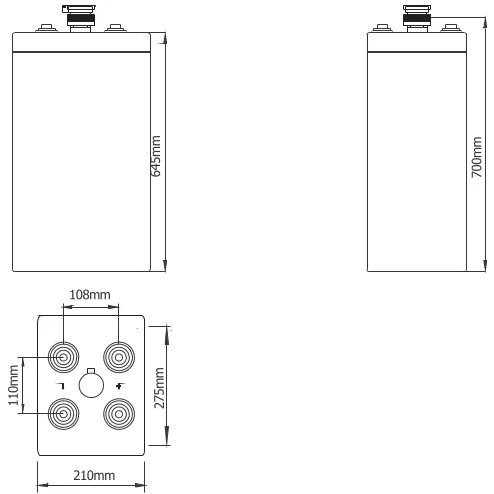

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 275 mm
- Width: 210 mm
- Height: 645 mm
- Total Height: 700 mm
- Weight: 61.5 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.21-2.25V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
