RGP6-4.5
SERIES RGP · GENERAL PURPOSE (AGM)Versatility and reliability for volume applications.
The RGP6-4.5 is a 6 V, 4.5 Ah (20-hour rate) AGM lead-acid battery from the Rekoser General Purpose (AGM) series. It measures 70 × 47 × 101 mm and weighs 0.73 kg. It stores 27 Wh and delivers up to 67 A. Versatility and reliability for volume applications. Typical applications: UPS and Data Centers, Security and Alarm Systems and Emergency Lighting.
Formerly RKE6-4.5.
Main Advantages
- AGM Technology: Fully sealed, maintenance-free, and leak-proof.
- High Energy Density: Optimized for critical and rapid discharges.
- Low Self-Discharge: Pb-Ca alloy allows for long storage periods.
- Advanced Safety: Safety valves and reinforced ABS container.
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 4.5 Ah (C20) |
| Energy | 27 Wh |
| Weight | 0.73 kg |
| Dimensions | 70 × 47 × 101 mm |
Main Applications
Quality Standards
RGP6-4.5
GENERAL PURPOSE (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 11.2A | 8.8A | 7.45A | 4.58A | 2.73A | 1.18A | 0.76A | 0.42A | 0.214A |
| 5.40 V | 12.7A | 9.34A | 7.64A | 4.68A | 2.77A | 1.2A | 0.77A | 0.425A | 0.22A |
| 5.25 V | 14.2A | 9.88A | 7.83A | 4.76A | 2.83A | 1.22A | 0.78A | 0.43A | 0.225A |
| 5.10 V | 15.5A | 10.3A | 8.04A | 4.87A | 2.88A | 1.23A | 0.79A | 0.435A | 0.23A |
| 4.95 V | 16.8A | 10.8A | 8.24A | 4.96A | 2.93A | 1.24A | 0.8A | 0.44A | 0.234A |
| 4.80 V | 18A | 11.2A | 8.53A | 5.08A | 2.96A | 1.25A | 0.81A | 0.446A | 0.239A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 5.55 V | 21.2W | 16.7W | 14.2W | 8.82W | 5.3W | 2.32W | 1W | 0.839W | 0.431W |
| 5.40 V | 23.5W | 17.5W | 14.5W | 8.91W | 5.32W | 2.33W | 1.01W | 0.845W | 0.44W |
| 5.25 V | 25.9W | 18.3W | 14.7W | 8.99W | 5.39W | 2.35W | 1.02W | 0.848W | 0.447W |
| 5.10 V | 28.1W | 19W | 14.9W | 9.13W | 5.44W | 2.35W | 1.03W | 0.852W | 0.453W |
| 4.95 V | 29.9W | 19.6W | 15.1W | 9.21W | 5.48W | 2.36W | 1.04W | 0.856W | 0.458W |
| 4.80 V | 31.8W | 20.1W | 15.6W | 9.39W | 5.52W | 2.36W | 1.05W | 0.862W | 0.463W |
RGP6-4.5
GENERAL PURPOSE (AGM)Specifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 4.5 Ah (C20) |
| Energy | 27 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.2-7.4V (-5mV/C), max. Current 2.1A Float use: 6.8-6.9V (-3mV/C) |
| Max. Charge Current | 1.35 A |
| Max. Discharge Current | 67 A |
| Internal Resistance | 22 mΩ |
| Self Discharge | 3 % of capacity per month at 25 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RGP6-4.5
GENERAL PURPOSE (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RGP6-4.5 battery, follow these assembly and connection guidelines.

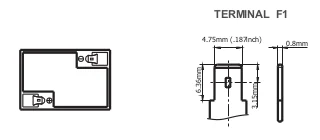

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 70 mm
- Width: 47 mm
- Height: 101 mm
- Total Height: 107 mm
- Weight: 0.73 kg
2. Terminals and Polarity
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.2-7.4V (-5mV/C), max. Current 2.1A
- Float use: 6.8-6.9V (-3mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
