Versatility and reliability for volume applications.
The RGP6-20 is a 6 V, 20 Ah (20-hour rate) AGM lead-acid battery from the Rekoser General Purpose (AGM) series. It measures 157 × 83 × 125 mm and weighs 3 kg, with F17 terminals. It stores 120 Wh and delivers up to 300 A. Versatility and reliability for volume applications. Typical applications: UPS and Data Centers, Security and Alarm Systems and Emergency Lighting.
Formerly RKE6-20.
Main Advantages
- AGM Technology: Fully sealed, maintenance-free, and leak-proof.
- High Energy Density: Optimized for critical and rapid discharges.
- Low Self-Discharge: Pb-Ca alloy allows for long storage periods.
- Advanced Safety: Safety valves and reinforced ABS container.
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 20 Ah (C20) |
| Energy | 120 Wh |
| Weight | 3 kg |
| Terminal | F17 |
| Dimensions | 157 × 83 × 125 mm |
Main Applications
Quality Standards
RGP6-20
GENERAL PURPOSE (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|
| 5.40 V | 40.3A | 32.7A | 18.9A | 11.9A | 4.85A | 3.3A | 1.82A | 0.98A |
| 5.25 V | 42.7A | 34.5A | 19.7A | 12.2A | 5A | 3.4A | 1.86A | 1A |
| 5.10 V | 44.6A | 35.7A | 20.1A | 12.5A | 5.04A | 3.42A | 1.87A | 1.01A |
| 4.95 V | 46.6A | 37.1A | 20.8A | 12.8A | 5.07A | 3.45A | 1.88A | 1.01A |
| 4.80 V | 48A | 38A | 21.2A | 13A | 5.1A | 3.47A | 1.89A | 1.02A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|
| 5.40 V | 227W | 186W | 108W | 68.6W | 28.8W | 19.7W | 10.9W | 5.88W |
| 5.25 V | 241W | 197W | 113W | 70.8W | 29.7W | 20.3W | 11.2W | 6W |
| 5.10 V | 252W | 204W | 115W | 72.3W | 29.9W | 20.4W | 11.2W | 6.04W |
| 4.95 V | 263W | 211W | 119W | 74.1W | 30.1W | 20.6W | 11.3W | 6.07W |
| 4.80 V | 271W | 217W | 121W | 75.3W | 30.3W | 20.7W | 11.3W | 6.09W |
RGP6-20
GENERAL PURPOSE (AGM)Specifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 20 Ah (C20) |
| Energy | 120 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.2-7.4V (-5mV/C), max. Current 2.1A Float use: 6.8-6.9V (-3mV/C) |
| Max. Charge Current | 6 A |
| Max. Discharge Current | 300 A |
| Internal Resistance | 9 mΩ |
| Self Discharge | 3 % of capacity per month at 25 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RGP6-20
GENERAL PURPOSE (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RGP6-20 battery, follow these assembly and connection guidelines.

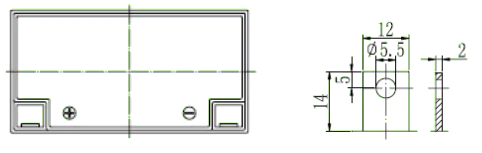

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 157 mm
- Width: 83 mm
- Height: 125 mm
- Total Height: 125 mm
- Weight: 3 kg
2. Terminal Configuration (F17)
- Terminals: Ensure your system's connectors match the F17 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.2-7.4V (-5mV/C), max. Current 2.1A
- Float use: 6.8-6.9V (-3mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
