RGP12-2.3
SERIES RGP · GENERAL PURPOSE (AGM)Versatility and reliability for volume applications.
The RGP12-2.3 is a 12 V, 2.3 Ah (20-hour rate) AGM lead-acid battery from the Rekoser General Purpose (AGM) series. It measures 178 × 35 × 61 mm and weighs 0.9 kg, with F1 terminals. It stores 28 Wh and delivers up to 33 A. Versatility and reliability for volume applications. Typical applications: UPS and Data Centers, Security and Alarm Systems and Emergency Lighting.
Formerly RKE12-2.3.
Main Advantages
- AGM Technology: Fully sealed, maintenance-free, and leak-proof.
- High Energy Density: Optimized for critical and rapid discharges.
- Low Self-Discharge: Pb-Ca alloy allows for long storage periods.
- Advanced Safety: Safety valves and reinforced ABS container.
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 2.3 Ah (C20) |
| Energy | 28 Wh |
| Weight | 0.9 kg |
| Terminal | F1 |
| Dimensions | 178 × 35 × 61 mm |
Main Applications
Quality Standards
RGP12-2.3
GENERAL PURPOSE (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 11.10 V | 5.49A | 4.3A | 3.64A | 2.24A | 1.34A | 0.58A | 0.36A | 0.215A | 0.11A |
| 10.80 V | 6.21A | 4.56A | 3.74A | 2.29A | 1.36A | 0.59A | 0.37A | 0.217A | 0.112A |
| 10.50 V | 6.93A | 4.83A | 3.83A | 2.33A | 1.38A | 0.6A | 0.38A | 0.22A | 0.115A |
| 10.20 V | 7.6A | 5.05A | 3.93A | 2.38A | 1.41A | 0.61A | 0.39A | 0.222A | 0.118A |
| 10.02 V | 8.19A | 5.28A | 4.03A | 2.42A | 1.43A | 0.62A | 0.4A | 0.225A | 0.12A |
| 9.60 V | 8.82A | 5.47A | 4.17A | 2.48A | 1.45A | 0.63A | 0.41A | 0.228A | 0.122A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 5MIN | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|---|---|
| 11.10 V | 10.3W | 8.17W | 6.96W | 4.31W | 2.59W | 1.11W | 0.71W | 0.41W | 0.211W |
| 10.80 V | 11.5W | 8.57W | 7.07W | 4.36W | 2.6W | 1.12W | 0.72W | 0.413W | 0.215W |
| 10.50 V | 12.7W | 8.96W | 7.18W | 4.4W | 2.63W | 1.13W | 0.73W | 0.415W | 0.218W |
| 10.20 V | 13.7W | 9.27W | 7.29W | 4.46W | 2.66W | 1.14W | 0.74W | 0.416W | 0.222W |
| 10.02 V | 14.6W | 9.59W | 7.4W | 4.5W | 2.68W | 1.15W | 0.75W | 0.418W | 0.224W |
| 9.60 V | 15.5W | 9.83W | 7.61W | 4.59W | 2.7W | 1.16W | 0.76W | 0.421W | 0.226W |
RGP12-2.3
GENERAL PURPOSE (AGM)Specifications
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 2.3 Ah (C20) |
| Energy | 28 Wh |
| Cell number | 6 |
| Charge Voltage (25°C) | Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A Float use: 13.6-13.8V (-20mV/C) |
| Max. Charge Current | 0.69 A |
| Max. Discharge Current | 33 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 25 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RGP12-2.3
GENERAL PURPOSE (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RGP12-2.3 battery, follow these assembly and connection guidelines.

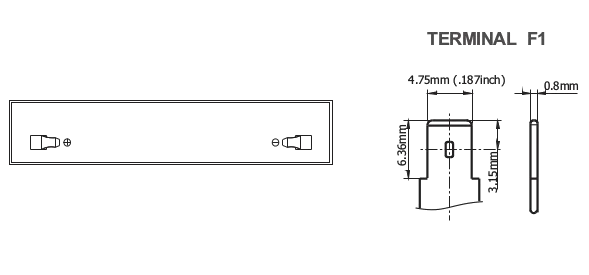

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 178 mm
- Width: 35 mm
- Height: 61 mm
- Total Height: 67 mm
- Weight: 0.9 kg
2. Terminal Configuration (F1)
- Terminals: Ensure your system's connectors match the F1 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A
- Float use: 13.6-13.8V (-20mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
