AGM Deep Cycle · Series RFC

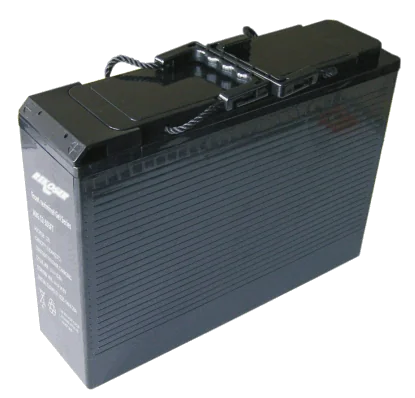

RFC Series – Front Terminal Deep Cycle

High cyclic density in rack format for critical sites with frequent grid outages.

Rekoser Front Terminal Deep Cycle AGM battery. EUROBAT-classified >12 Years (Very Long Life), it merges deep-cycle endurance with front-access rack integration for critical sites with frequent grid outages: remote telecom and microgrids with intensive cyclic backup.

Request a quote Models (7) PDF
RFC Series – Front Terminal Deep Cycle
Models
7
Nominal Voltage
12 V
Capacity
50–200 Ah
Design life
12 years
Warranty
2 years
EUROBAT
>12 Years (Very Long Life)

Key features

  • Deep cycle: Built for frequent cyclic discharge
  • Front terminal: Rack integration with front access
  • Long life: EUROBAT class above 12 years
  • AGM technology: Sealed and maintenance-free

Applications

  • Telecommunications and Base Stations
    Critical backup for network infrastructures and mobile base stations in remote locations with extreme weather conditions.
  • Microgrids and Off-Grid Sites
    Cyclic backup at sites with frequent grid outages or no grid at all.

Standards and certifications

CE CERTIFIED ISO 9001 / 14001 IEC 60896-21/22 JIS C8704 GB/T19639

RFC series models

Each model links to its datasheet with discharge tables, dimensions and charge parameters. Rated capacity at 25 °C; C20 = 20-hour rate.

Model Nominal Voltage Capacity Length (mm) Width (mm) Height (mm) Weight (kgs)Terminal
RFC12-50 (formerly RKC12-50FT) 12 V 50 Ah (C10) 277 106 221 17F11
RFC12-75 (formerly RKC12-75FT) 12 V 75 Ah (C10) 564 115 189 25F11
RFC12-100 (formerly RKC12-100FT) 12 V 100 Ah (C10) 508 110 223 31
RFC12-150 (formerly RKC12-150FT) 12 V 150 Ah (C10) 551 110 267 37.5F13
RFC12-170 (formerly RKC12-170FT) 12 V 170 Ah (C10) 560 125 316 52M8
RFC12-180 (formerly RKC12-180FT) 12 V 180 Ah (C10) 560 126 316 53M8
RFC12-200 (formerly RKC12-200FT) 12 V 200 Ah (C10) 560 126 316 58M8

Construction

ComponentMaterial
ContainerABS (Flame Retardant Optional)
CoverABS (Flame Retardant Optional)
ElectrolyteSulphuric acid
NegativeLead
PositiveLead dioxide
Safety ValveRubber
SealantEpoxy Resin
SeparatorFibre Glass
TerminalCopper

Downloads

RFC series datasheets (PDF)
