ROV12-200
SERIES ROV · OPZV (TUBULAR GEL)The best of lead. Maintenance-free with extreme service life.

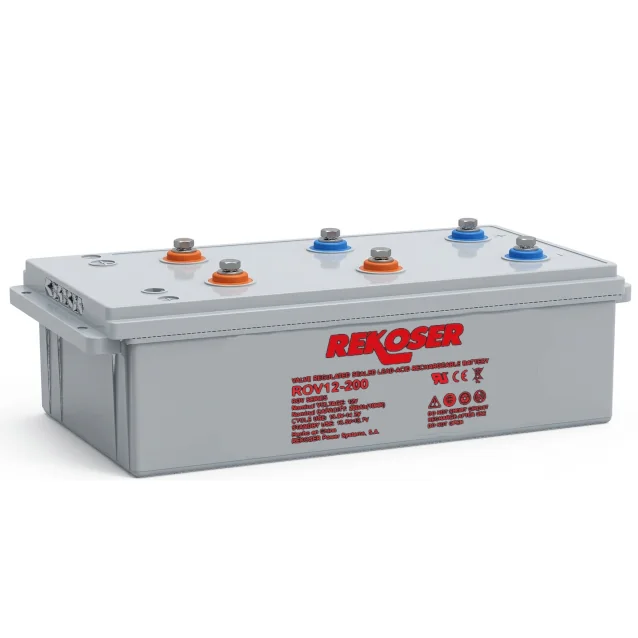

The ROV12-200 is a 12 V, 200 Ah (10-hour rate) OPzV lead-acid battery from the Rekoser OPzV (Tubular Gel) series. It measures 499 × 259 × 238 mm and weighs 73.5 kg, with IT-M8-CU-20-7 terminals. It stores 2.4 kWh and delivers up to 1000 A. The best of lead. Maintenance-free with extreme service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKV12-200.
Main Advantages
- Combination: Tubular plates with gel electrolyte
- Maintenance: Zero maintenance required
- Durability: 20 years design life at 20ºC
- Install: Can be installed horizontally in racks
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10) |
| Energy | 2400 Wh |
| Weight | 73.5 kg |
| Terminal | IT-M8-CU-20-7 |
| Dimensions | 499 × 259 × 238 mm |
Main Applications
Quality Standards
ROV12-200
OPZV (TUBULAR GEL)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 11.1 V | 138A | 90.3A | 45.6A | 32.8A | 18.2A | 9.6A |
| 10.8 V | 148A | 96.9A | 48.1A | 34.5A | 19A | 10A |
| 10.5 V | 154A | 99.9A | 49.6A | 35.6A | 19.1A | 10.1A |
| 10.2 V | 158A | 102A | 49.9A | 35.8A | 19.2A | 10.1A |
| 9.9 V | 163A | 105A | 50.3A | 36.1A | 19.3A | 10.2A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 11.1 V | 258W | 172W | 89.4W | 64.5W | 36.3W | 19.2W |
| 10.8 V | 277W | 184W | 94.3W | 68W | 37.8W | 20W |
| 10.5 V | 288W | 190W | 97.2W | 71.1W | 38W | 20.1W |
| 10.2 V | 295W | 194W | 97.9W | 70.6W | 38.3W | 20.3W |
| 9.9 V | 304W | 199W | 98.6W | 71.1W | 38.4W | 20.3W |
ROV12-200
OPZV (TUBULAR GEL)Specifications
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 200 Ah (C10) |
| Energy | 2400 Wh |
| Cell number | 6 |
| Charge Voltage (25°C) | Cycle use: 13.80-14.10V (-30mV/ºC/cell) Float use: 13.50-13.80V (-18mV/ºC/cell) |
| Max. Charge Current | 40 A |
| Max. Discharge Current | 1000 A |
| Internal Resistance | 3.6 mΩ |
| Self Discharge | 2 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS(UL94-V0 optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Immobilized Gel |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROV12-200
OPZV (TUBULAR GEL)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROV12-200 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 499 mm
- Width: 259 mm
- Height: 238 mm
- Total Height: 238 mm
- Weight: 73.5 kg
2. Terminal Configuration (IT-M8-CU-20-7)
- Terminals: Ensure your system's connectors match the IT-M8-CU-20-7 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 13.80-14.10V (-30mV/ºC/cell)
- Float use: 13.50-13.80V (-18mV/ºC/cell)
4. Safety and Storage
Maintenance: Immobilised gel and tubular plate: sealed, no water topping up.
Position: Upright, or horizontal on a rack.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
