RFT12-110
SERIES RFT · FRONT TERMINAL (AGM)Space optimisation and front-access connection for racks.
The RFT12-110 is a 12 V, 110 Ah (10-hour rate) AGM lead-acid battery from the Rekoser Front Terminal (AGM) series. It measures 395 × 110 × 285 mm and weighs 32.5 kg, with F14 terminals. It stores 1.32 kWh and delivers up to 800 A. Space optimisation and front-access connection for racks. Typical applications: Telecommunications and Base Stations and UPS and Data Centers.
Formerly RKE12-110FT.
Main Advantages
- Front terminal: Connect and measure without removing the unit
- 19'' rack: Format designed for cabinets and racks
- Long life: EUROBAT class above 12 years
- AGM technology: Sealed and maintenance-free
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 110 Ah (C10) |
| Energy | 1320 Wh |
| Weight | 32.5 kg |
| Terminal | F14 |

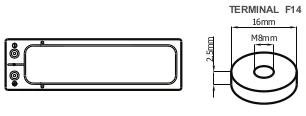

| Dimensions | 395 × 110 × 285 mm |
Main Applications
Quality Standards
RFT12-110
FRONT TERMINAL (AGM)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|
| 9.60 V | 178A | 108A | 68.2A | 28.1A | 19.6A | 11.2A | 5.88A |
| 10.02 V | 174A | 106A | 67.2A | 27.9A | 19.5A | 11.2A | 5.87A |
| 10.20 V | 167A | 102A | 65.5A | 27.7A | 19.4A | 11.1A | 5.85A |
| 10.50 V | 162A | 99.9A | 64.2A | 27.5A | 19.3A | 11.1A | 5.82A |
| 10.80 V | 153A | 96.3A | 62.2A | 26.7A | 18.7A | 11A | 5.78A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|
| 9.60 V | 1953W | 1210W | 777W | 330W | 232W | 134W | 70.5W |
| 10.02 V | 1906W | 1185W | 776W | 328W | 231W | 133W | 70.4W |
| 10.20 V | 1836W | 1149W | 746W | 326W | 229W | 133W | 70.2W |
| 10.50 V | 1773W | 1121W | 732W | 323W | 228W | 132W | 69.8W |
| 10.80 V | 1680W | 1080W | 709W | 314W | 221W | 131W | 69.3W |
RFT12-110
FRONT TERMINAL (AGM)Specifications
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 110 Ah (C10), 105 Ah (C20) |
| Energy | 1320 Wh |
| Cell number | 6 |
| Charge Voltage (25°C) | Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A Float use: 13.6-13.8V (-20mV/C) |
| Max. Charge Current | 30 A |
| Max. Discharge Current | 800 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 25 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RFT12-110
FRONT TERMINAL (AGM)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RFT12-110 battery, follow these assembly and connection guidelines.
1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 395 mm
- Width: 110 mm
- Height: 285 mm
- Total Height: 285 mm
- Weight: 32.5 kg
2. Terminal Configuration (F14)
- Terminals: Ensure your system's connectors match the F14 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 14.6-14.8V (-30mV/C), max. Current 2.1A
- Float use: 13.6-13.8V (-20mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
Nearby models
RFT12-100 (12 V · 100 Ah) · RFT12-170 (12 V · 170 Ah) · See all RFT series models
The same battery in other series: RHP12-110 (RHP Series – High Performance (AGM))
