ROV2-420
SERIES ROV · OPZV (TUBULAR GEL)The best of lead. Maintenance-free with extreme service life.

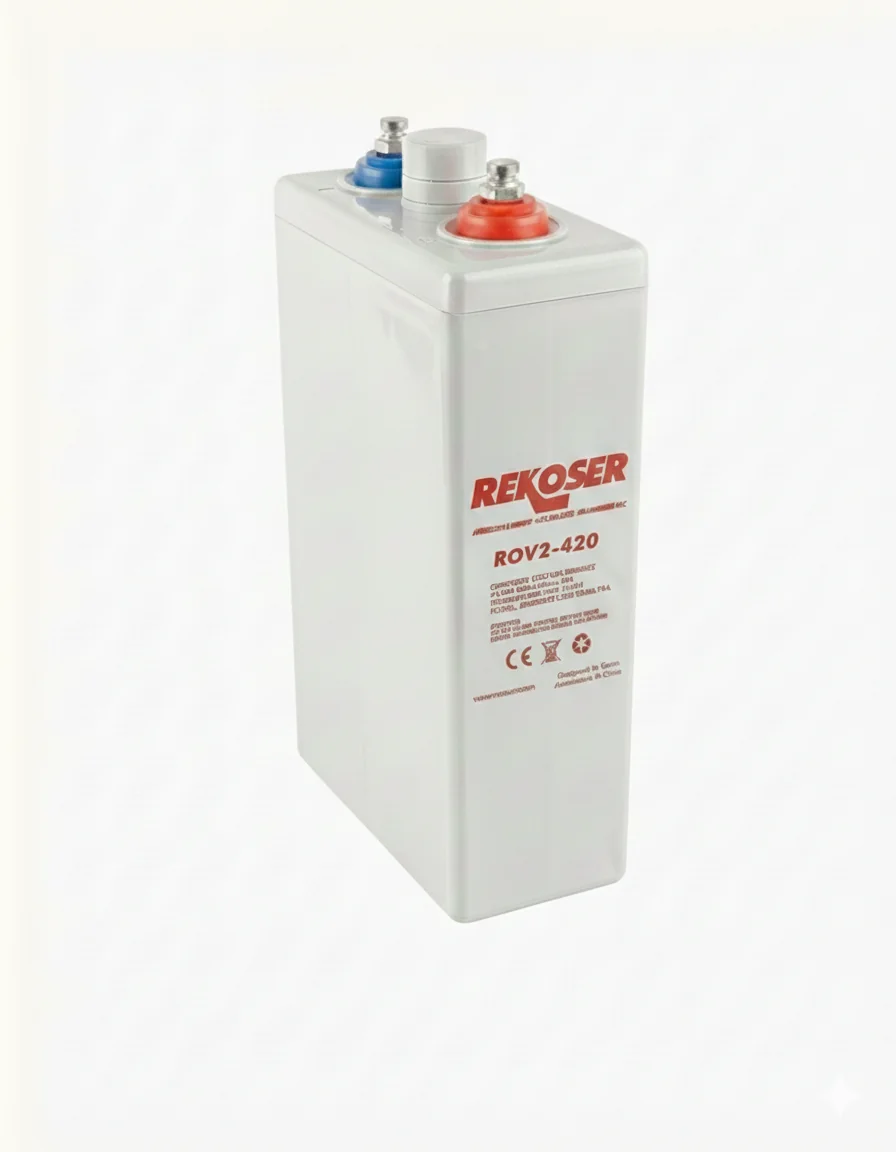

The ROV2-420 is a 2 V, 420 Ah (10-hour rate) OPzV lead-acid battery from the Rekoser OPzV (Tubular Gel) series. It measures 145 × 206 × 471 mm and weighs 31 kg, with IT-M8-CU-20-7 terminals. It stores 840 Wh and delivers up to 2100 A. The best of lead. Maintenance-free with extreme service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKV2-420.
Main Advantages
- Combination: Tubular plates with gel electrolyte
- Maintenance: Zero maintenance required
- Durability: 20 years design life at 20ºC
- Install: Can be installed horizontally in racks
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 420 Ah (C10) |
| Energy | 840 Wh |
| Weight | 31 kg |
| Terminal | IT-M8-CU-20-7 |
| Dimensions | 145 × 206 × 471 mm |
Main Applications
Quality Standards
ROV2-420
OPZV (TUBULAR GEL)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 154A | 150A | 140A | 118A | 84A | 62.2A | 36.8A |
| 1.85 V | 241A | 221A | 190A | 150A | 100A | 71.8A | 40.4A |
| 1.80 V | 315A | 286A | 230A | 182A | 110A | 75A | 42A |
| 1.75 V | 334A | 314A | 270A | 198A | 113A | 76.4A | 43.3A |
| 1.70 V | 363A | 344A | 297A | 209A | 116A | 77.7A | 44.1A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 297W | 290W | 273W | 231W | 167W | 125W | 74.3W |
| 1.85 V | 451W | 415W | 260W | 286W | 194W | 141W | 80.3W |
| 1.80 V | 573W | 522W | 425W | 339W | 210W | 144W | 81.8W |
| 1.75 V | 598W | 564W | 491W | 364W | 213W | 145W | 83.3W |
| 1.70 V | 642W | 611W | 532W | 380W | 215W | 146W | 84.3W |
ROV2-420
OPZV (TUBULAR GEL)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 420 Ah (C10) |
| Energy | 840 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.25-2.29V (-3mV/ºC/cell) |
| Max. Charge Current | 84 A |
| Max. Discharge Current | 2100 A |
| Short-circuit current | 3400A |
| Internal Resistance | 0.7 mΩ |
| Self Discharge | 2 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS(UL94-V0 optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Immobilized Gel |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROV2-420
OPZV (TUBULAR GEL)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROV2-420 battery, follow these assembly and connection guidelines.

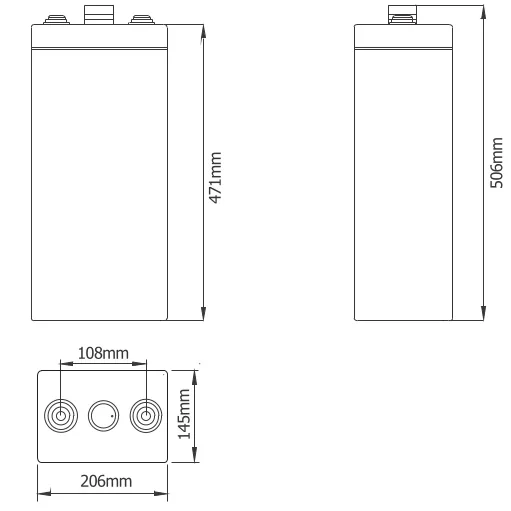

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 145 mm
- Width: 206 mm
- Height: 471 mm
- Total Height: 506 mm
- Weight: 31 kg
2. Terminal Configuration (IT-M8-CU-20-7)
- Terminals: Ensure your system's connectors match the IT-M8-CU-20-7 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.25-2.29V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Immobilised gel and tubular plate: sealed, no water topping up.
Position: Upright, or horizontal on a rack.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
