ROV2-1500
SERIES ROV · OPZV (TUBULAR GEL)The best of lead. Maintenance-free with extreme service life.

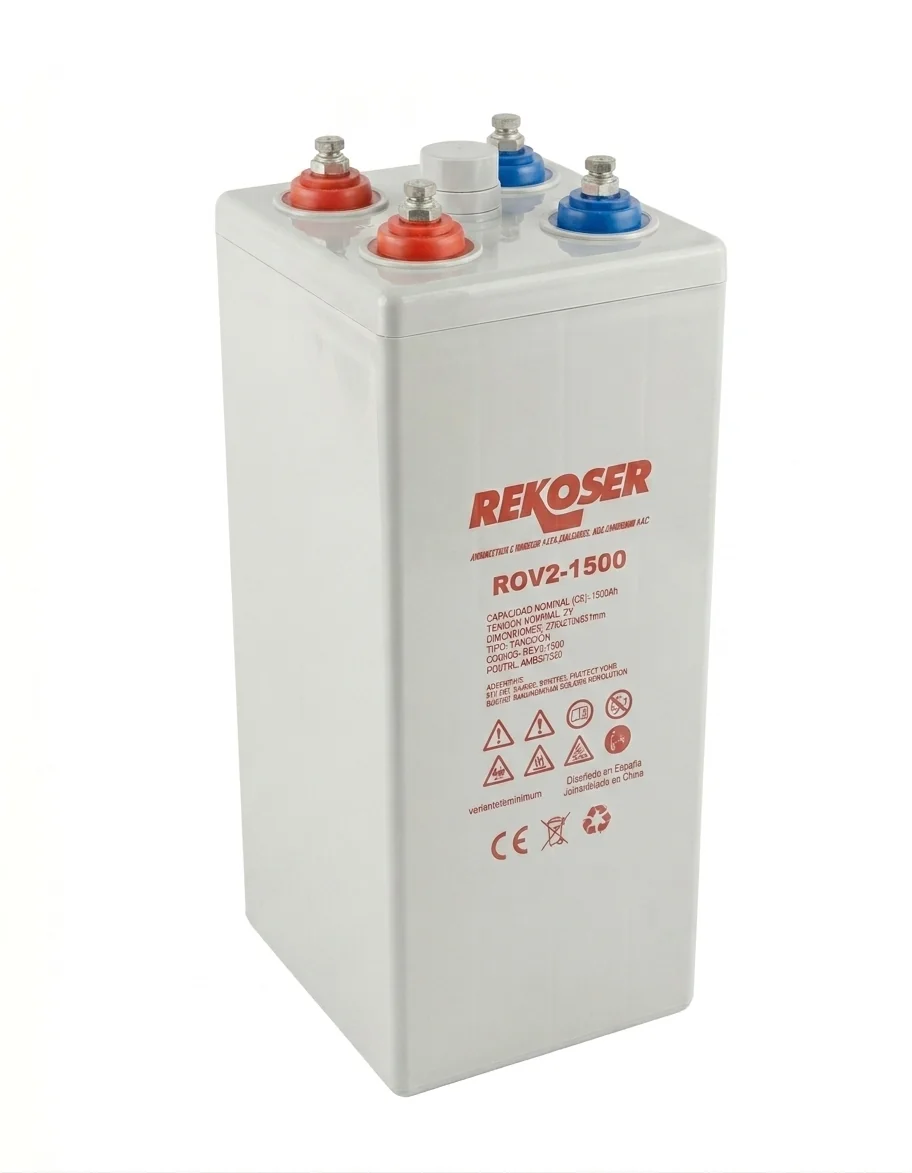

The ROV2-1500 is a 2 V, 1500 Ah (10-hour rate) OPzV lead-acid battery from the Rekoser OPzV (Tubular Gel) series. It measures 275 × 210 × 796 mm and weighs 105 kg, with F10 terminals. It stores 3 kWh and delivers up to 3000 A. The best of lead. Maintenance-free with extreme service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKV2-1500.
Main Advantages
- Combination: Tubular plates with gel electrolyte
- Maintenance: Zero maintenance required
- Durability: 20 years design life at 20ºC
- Install: Can be installed horizontally in racks
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 1500 Ah (C10) |
| Energy | 3000 Wh |
| Weight | 105 kg |
| Terminal | F10 |
| Dimensions | 275 × 210 × 796 mm |
Main Applications
Quality Standards
ROV2-1500
OPZV (TUBULAR GEL)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 534A | 519A | 485A | 407A | 294A | 218A | 129A |
| 1.85 V | 837A | 766A | 660A | 519A | 349A | 251A | 141A |
| 1.80 V | 1091A | 989A | 798A | 631A | 386A | 262A | 150A |
| 1.75 V | 1157A | 1086A | 936A | 686A | 397A | 268A | 151A |
| 1.70 V | 1259A | 1193A | 1028A | 725A | 404A | 272A | 154A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 1031W | 1005W | 944W | 799W | 585W | 436W | 260W |
| 1.85 V | 1563W | 1438W | 1247W | 991W | 679W | 494W | 281W |
| 1.80 V | 1985W | 1809W | 1472W | 1176W | 736W | 505W | 286W |
| 1.75 V | 2071W | 1956W | 1702W | 1262W | 745W | 508W | 292W |
| 1.70 V | 2223W | 2118W | 1845W | 1316W | 751W | 511W | 295W |
ROV2-1500
OPZV (TUBULAR GEL)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 1500 Ah (C10) |
| Energy | 3000 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-5mV/ºC/cell) Float use: 2.25-2.29V (-3mV/ºC/cell) |
| Max. Charge Current | 300 A |
| Max. Discharge Current | 3000 A |
| Internal Resistance | 0.31 mΩ |
| Self Discharge | 2 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS(UL94-V0 optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Immobilized Gel |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROV2-1500
OPZV (TUBULAR GEL)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROV2-1500 battery, follow these assembly and connection guidelines.

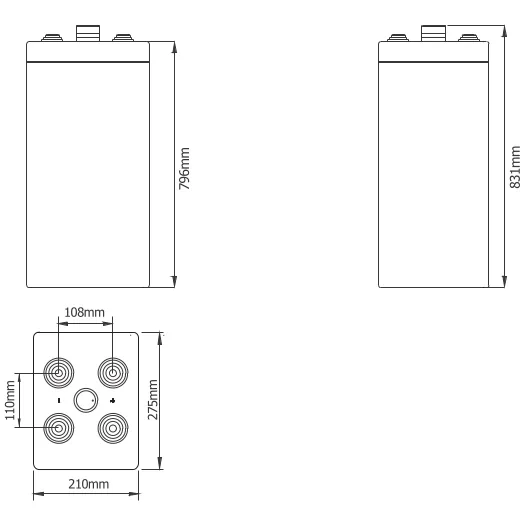

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 275 mm
- Width: 210 mm
- Height: 796 mm
- Total Height: 831 mm
- Weight: 105 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-5mV/ºC/cell)
- Float use: 2.25-2.29V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Immobilised gel and tubular plate: sealed, no water topping up.
Position: Upright, or horizontal on a rack.
Charging: Keep to the stated charge voltage: gel is sensitive to overcharging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
