ROS6-150
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.

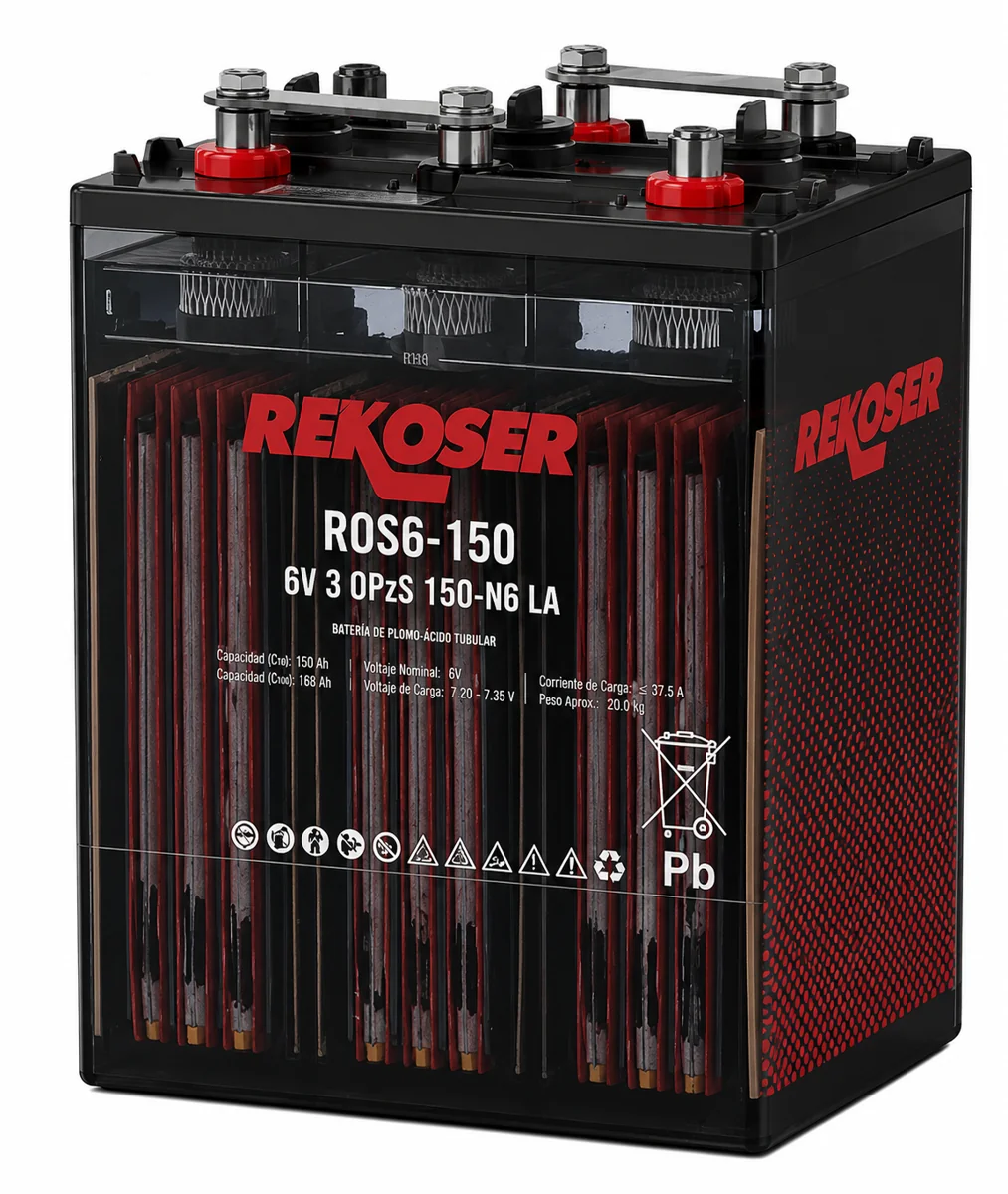

The ROS6-150 is a 6 V, 150 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 270 × 205 × 390 mm and weighs 42 kg, with IT-M8-CU-20-7 terminals. It stores 900 Wh and delivers up to 1000 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 150 Ah (C10) |
| Energy | 900 Wh |
| Weight | 42 kg |
| Terminal | IT-M8-CU-20-7 |
| Dimensions | 270 × 205 × 390 mm |
Main Applications
Quality Standards
ROS6-150
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 54.5A | 49.5A | 48.5A | 44.9A | 28.4A | 20.9A | 13.7A |
| 1.85 V | 62A | 60.9A | 60.6A | 51A | 31.4A | 24.5A | 14.3A |
| 1.80 V | 99A | 96.9A | 83.4A | 65.6A | 38.4A | 26A | 15A |
| 1.75 V | 119A | 115A | 95.4A | 73.1A | 39.8A | 26.7A | 15.5A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 10MIN | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|
| 1.90 V | 106W | 94.8W | 91.7W | 86.3W | 61.7W | 44.7W | 28.2W |
| 1.85 V | 120W | 117W | 114W | 98.1W | 64.5W | 49.7W | 30.6W |
| 1.80 V | 192W | 165W | 152W | 129W | 82.1W | 56.7W | 33W |
| 1.75 V | 231W | 169W | 153W | 130W | 86.9W | 59.3W | 34.4W |
ROS6-150
OPZS (FLOODED)Specifications
| Nominal Voltage | 6 V |
|---|---|
| Capacity (25ºC) | 150 Ah (C10) |
| Energy | 900 Wh |
| Cell number | 3 |
| Charge Voltage (25°C) | Cycle use: 7.80-8.40V (-5mV/ºC/cell) Float use: 7.35-7.5V (-3mV/ºC/cell) |
| Max. Charge Current | 30 A |
| Max. Discharge Current | 1000 A |
| Short-circuit current | 2400 |
| Internal Resistance | 0.85 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS6-150
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS6-150 battery, follow these assembly and connection guidelines.

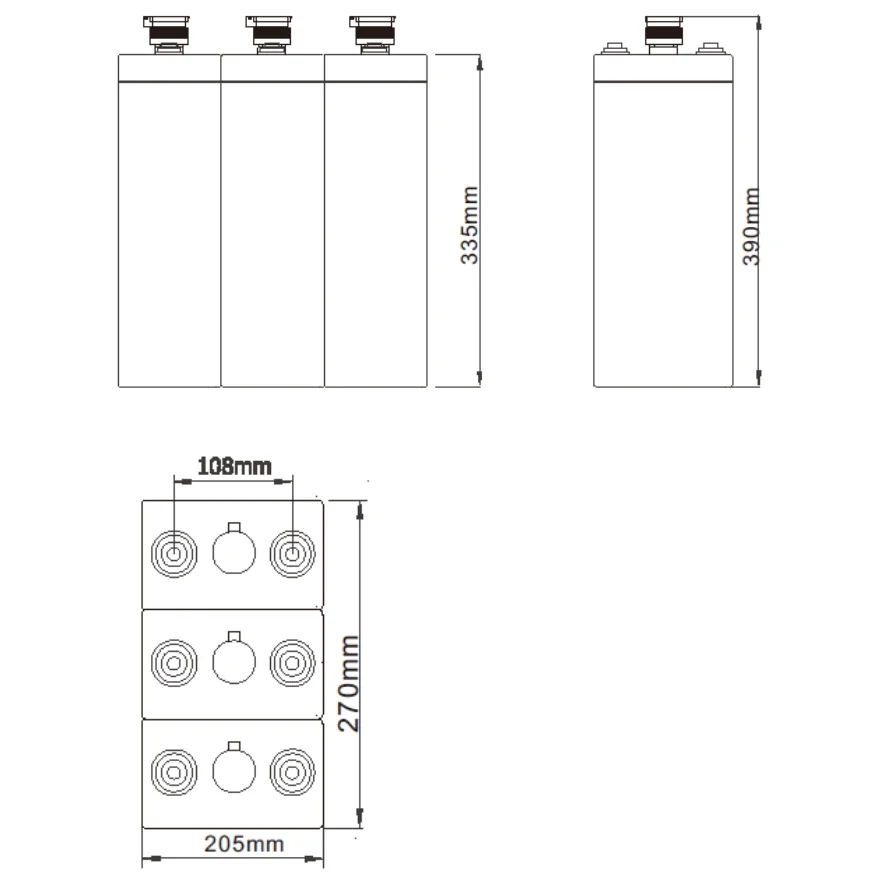

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 270 mm
- Width: 205 mm
- Height: 390 mm
- Weight: 42 kg
2. Terminal Configuration (IT-M8-CU-20-7)
- Terminals: Ensure your system's connectors match the IT-M8-CU-20-7 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 7.80-8.40V (-5mV/ºC/cell)
- Float use: 7.35-7.5V (-3mV/ºC/cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
