ROS12-100
SERIES ROS · OPZS (FLOODED)The energy tank. 20+ years of proven service life.

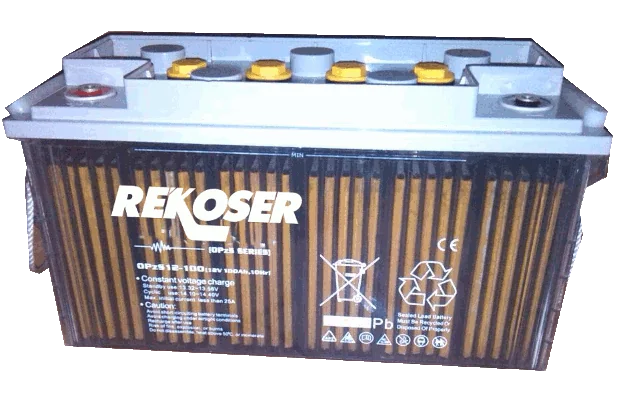

The ROS12-100 is a 12 V, 100 Ah (10-hour rate) OPzS lead-acid battery from the Rekoser OPzS (Flooded) series. It measures 409 × 176 × 225 mm and weighs 42.5 kg, with F10 terminals. It stores 1.2 kWh and delivers up to 800 A. The energy tank. 20+ years of proven service life. Typical applications: Solar/Wind Energy Systems, Electrical Substations, Telecommunications and Base Stations and Railway Signaling and Infrastructure.
Formerly RKS12-100.
Main Advantages
- Technology: Vented tubular plates with liquid electrolyte
- Maintenance: Periodic topping up with distilled water required
- Durability: Over 20 years proven design life at 20ºC
- Control: Transparent container for easy electrolyte level monitoring
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 100 Ah (C10) |
| Energy | 1200 Wh |
| Weight | 42.5 kg |
| Terminal | F10 |
| Dimensions | 409 × 176 × 225 mm |
Main Applications
Quality Standards
ROS12-100
OPZS (FLOODED)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|
| 10.80 V | 91.2A | 73.2A | 51.1A | 24.7A | 17.5A | 10A | 5.4A |
| 10.50 V | 96.2A | 76A | 52.7A | 25.5A | 18A | 10.1A | 5.44A |
| 10.20 V | 99.6A | 77.9A | 53.8A | 25.7A | 18.1A | 10.1A | 5.47A |
| 9.90 V | 103A | 80.4A | 55.2A | 26A | 18.4A | 10.2A | 5.49A |
| 9.60 V | 106A | 82A | 56A | 26.2A | 18.5A | 10.2A | 5.5A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 15MIN | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|---|
| 10.80 V | 167W | 137W | 97W | 48.5W | 34.4W | 19.9W | 10.8W |
| 10.50 V | 176W | 142W | 100W | 50W | 35.5W | 20W | 10.9W |
| 10.20 V | 182W | 146W | 102W | 50.3W | 35.7W | 20.2W | 10.9W |
| 9.90 V | 189W | 150W | 105W | 51W | 36.2W | 20.2W | 11W |
| 9.60 V | 194W | 153W | 106W | 51.3W | 36.4W | 20.3W | 11W |
ROS12-100
OPZS (FLOODED)Specifications
| Nominal Voltage | 12 V |
|---|---|
| Capacity (25ºC) | 100 Ah (C10), 108 Ah (C20) |
| Energy | 1200 Wh |
| Cell number | 6 |
| Charge Voltage (25°C) | Cycle use: 14.1-14.4V (-5mV / o C/ cell) Float use: 13.2-13.5V (-3mV / o C/ cell) |
| Max. Charge Current | 20 A |
| Max. Discharge Current | 800 A |
| Internal Resistance | 0.35 mΩ |
| Self Discharge | 3 % of capacity per month at 20 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | SAN |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
ROS12-100
OPZS (FLOODED)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER ROS12-100 battery, follow these assembly and connection guidelines.

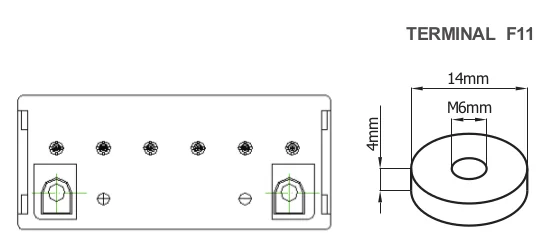

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 409 mm
- Width: 176 mm
- Height: 225 mm
- Total Height: 225 mm
- Weight: 42.5 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 14.1-14.4V (-5mV / o C/ cell)
- Float use: 13.2-13.5V (-3mV / o C/ cell)
4. Safety and Storage
Maintenance: Check the electrolyte level and top up only with distilled or demineralised water.
Position: Always upright.
Ventilation: Install in a ventilated room: hydrogen is released during charging.
Storage: Store charged, in a cool and dry place, and recharge periodically.
