AGM · Series RHP

RHP Series – High Performance (AGM)

The industry standard. The perfect balance between service life and cost.

The RHP Series is the industrial standard for critical infrastructures demanding unwavering reliability. These batteries hold a EUROBAT 'High Performance' classification with a 10 to 12-year design life, thanks to robust construction with reinforced plates that better withstand corrosion. Its internal engineering is optimized to provide high energy density and consistent response in industrial backup systems. By utilizing high-purity raw materials, the RHP series ensures superior charge acceptance and constant voltage stability throughout its entire operational life.

Request a quote Models (24) PDF
RHP Series – High Performance (AGM)
Models
24
Nominal Voltage
6 V, 12 V
Capacity
33–250 Ah
Design life
12 years
Warranty
2 years
EUROBAT
10-12 Years (High Performance)

Key features

  • Service Life: 10-12 years design life
  • Grid: Heavy-duty Pb-Ca-Sn alloy grids
  • Reliability: Consistent performance in critical backup
  • Efficiency: High gas recombination efficiency

Applications

  • Telecommunications and Base Stations
    Critical backup for network infrastructures and mobile base stations in remote locations with extreme weather conditions.
  • UPS and Data Centers

Standards and certifications

CE CERTIFIED ISO 9001 / 14001 GB/T19639 IEC 61056 JIS C8702

RHP series models

Each model links to its datasheet with discharge tables, dimensions and charge parameters. Rated capacity at 25 °C; C20 = 20-hour rate.

Model Nominal Voltage Capacity Length (mm) Width (mm) Height (mm) Weight (kgs)Terminal
RHP6-200 (formerly RKE6-200) 6 V 200 Ah (C20) 306 168 220 29F12
RHP6-225 (formerly RKE6-225) 6 V 225 Ah (C20) 320 176 225 32F12

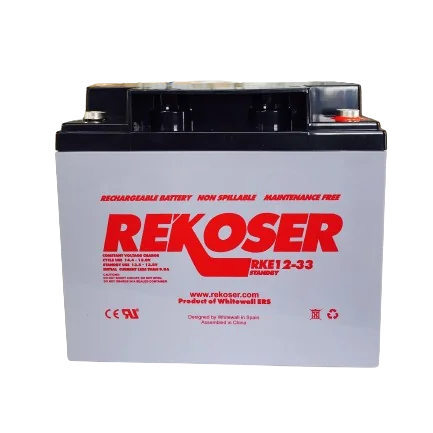

RHP12-33 (formerly RKE12-33) 12 V 33 Ah (C10) 195 130 155 10.2F11
RHP12-35 (formerly RKE12-35) 12 V 35 Ah (C10) 195 130 155 10.5F11
RHP12-36 (formerly RKE12-36) 12 V 36 Ah (C10) 197 165 170 12.3F11
RHP12-38 (formerly RKE12-38) 12 V 38 Ah (C10) 197 165 170 12.3F11
RHP12-40 (formerly RKE12-40) 12 V 40 Ah (C10) 197 165 170 13F11
RHP12-45 (formerly RKE12-45) 12 V 45 Ah (C20) 197 165 170 13.1F11
RHP12-50 (formerly RKE12-50) 12 V 50 Ah (C10) 229 138 208 20.5F11
RHP12-55 (formerly RKE12-55) 12 V 55 Ah (C10) 229 138 208 16.5F14
RHP12-60 (formerly RKE12-60) 12 V 60 Ah (C10) 260 168 211 20F11
RHP12-65 (formerly RKE12-65) 12 V 65 Ah (C10) 350 167 179 20.5F11
RHP12-70 (formerly RKE12-70) 12 V 70 Ah (C10) 260 169 211 21.5F11
RHP12-75 (formerly RKE12-75) 12 V 75 Ah (C20) 260 169 208 22.5F11
RHP12-80 (formerly RKE12-80) 12 V 80 Ah (C10) 350 167 179 23F11
RHP12-90 (formerly RKE12-90) 12 V 90 Ah (C20) 306 169 208 26.5F11
RHP12-100 (formerly RKE12-100) 12 V 100 Ah (C10) 328 171 214 30F14
RHP12-110 (formerly RKE12-110) 12 V 110 Ah (C10) 395 110 285 32.5F14
RHP12-120 (formerly RKE12-120) 12 V 120 Ah (C10) 410 176 227 34F13
RHP12-135 (formerly RKE12-135) 12 V 135 Ah (C20) 342 172 273 42F13
RHP12-150 (formerly RKE12-150) 12 V 150 Ah (C10) 485 172 240 44F12
RHP12-160 (formerly RKE12-160) 12 V 160 Ah (C10) 522 238 218 47.1F13
RHP12-200 (formerly RKE12-200) 12 V 200 Ah (C10) 522 238 218 60F12
RHP12-250 (formerly RKE12-250) 12 V 250 Ah (C10) 520 269 220 70F12

Construction

ComponentMaterial
ContainerABS (Flame Retardant Optional)
CoverABS (Flame Retardant Optional)
ElectrolyteSulphuric acid
NegativeLead
PositiveLead dioxide
Safety ValveRubber
SealantEpoxy Resin
SeparatorFibre Glass
TerminalCopper

Downloads

RHP series datasheets (PDF)
