Maximum AGM longevity (2V). Critical infrastructure.
The RXL2-800 is a 2 V, 800 Ah (10-hour rate) AGM lead-acid battery from the Rekoser eXtended Long Life (AGM 2V) series. It measures 410 × 175 × 330 mm and weighs 50 kg, with F10 terminals. It stores 1.6 kWh and delivers up to 3200 A. Maximum AGM longevity (2V). Critical infrastructure. Typical applications: Railway Signaling and Infrastructure, Power Generation and UPS and Data Centers.
Formerly RKE2-800.
Main Advantages
- Format: 2V single cells for modular configuration
- Design Life: 20 years ultra-long life
- Construction: Thick plates for extended service
- Stability: Excellent performance in floating use
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 800 Ah (C10) |
| Energy | 1600 Wh |
| Weight | 50 kg |
| Terminal | F10 |
| Dimensions | 410 × 175 × 330 mm |
Main Applications
Quality Standards
RXL2-800
EXTENDED LONG LIFE (AGM 2V)Graphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 643A | 438A | 198A | 138A | 80A | 42A |
| 1.75 V | 667A | 452A | 204A | 142A | 80.6A | 42.3A |
| 1.70 V | 684A | 461A | 205A | 143A | 81A | 42.5A |
| 1.65 V | 706A | 473A | 207A | 144A | 81.3A | 42.7A |
| 1.60 V | 720A | 480A | 208A | 145A | 81.4A | 42.8A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 30MIN | 1HR | 3HR | 5HR | 10HR | 20HR |
|---|---|---|---|---|---|---|
| 1.80 V | 1202W | 832W | 388W | 272W | 159W | 84.4W |
| 1.75 V | 1248W | 858W | 400W | 281W | 160W | 84.6W |
| 1.70 V | 1279W | 876W | 403W | 282W | 161W | 85.1W |
| 1.65 V | 1319W | 898W | 405W | 284W | 162W | 85.3W |
| 1.60 V | 1346W | 912W | 408W | 286W | 162W | 85.5W |
RXL2-800
EXTENDED LONG LIFE (AGM 2V)Specifications
| Nominal Voltage | 2 V |
|---|---|
| Capacity (25ºC) | 800 Ah (C10) |
| Energy | 1600 Wh |
| Cell number | 1 |
| Charge Voltage (25°C) | Cycle use: 2.35-2.40V (-3mV/C), max. Current 2.1A Float use: 2.25-2.29V (-2mV/C) |
| Max. Charge Current | 160 A |
| Max. Discharge Current | 3200 A |
| Internal Resistance | 25 mΩ |
| Self Discharge | 3 % of capacity per month at 25 °C |
| Capacity Affected by Temperature | 40 °C: 102 %, 25 °C: 100 %, 0 °C: 85 %, -15 °C: 65 % |
Construction
| Component | Material |
|---|---|
| Container | ABS (Flame Retardant Optional) |
| Cover | ABS (Flame Retardant Optional) |
| Electrolyte | Sulphuric acid |
| Negative | Lead |
| Positive | Lead dioxide |
| Safety Valve | Rubber |
| Sealant | Epoxy Resin |
| Separator | Fibre Glass |
| Terminal | Copper |
RXL2-800
EXTENDED LONG LIFE (AGM 2V)Quick Installation Guide
To ensure optimal performance and maximize the lifespan of your REKOSER RXL2-800 battery, follow these assembly and connection guidelines.

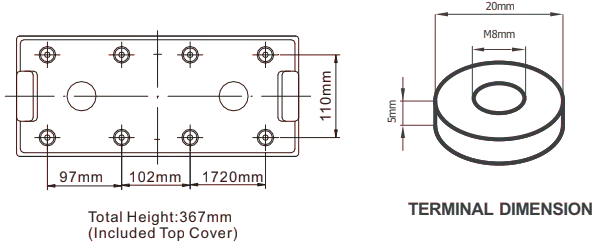

1. Space and Dimension Verification
Before proceeding, ensure the receptacle or cabinet of your equipment complies with the unit's physical measurements:
- Length: 410 mm
- Width: 175 mm
- Height: 330 mm
- Total Height: 367 mm
- Weight: 50 kg
2. Terminal Configuration (F10)
- Terminals: Ensure your system's connectors match the F10 type to prevent electrical arcing.
- Polarity: Check the positive and negative markings on the battery before connecting, to prevent short circuits.
3. Charge Parameters
- Cycle use: 2.35-2.40V (-3mV/C), max. Current 2.1A
- Float use: 2.25-2.29V (-2mV/C)
4. Safety and Storage
Maintenance: Sealed AGM technology, maintenance-free and leak-proof.
Position: Can be installed in any orientation, except inverted.
Storage: Store charged, in a cool and dry place, and recharge periodically.
