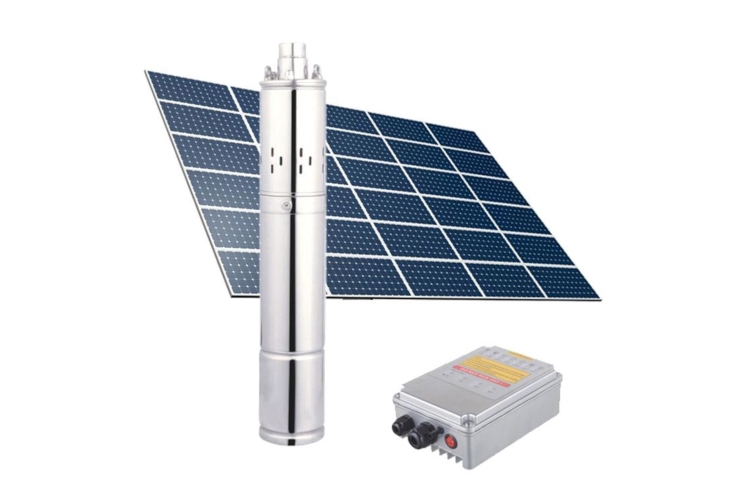

Helical Rotor Submersible Solar Water Pumps RWP-SMH, RWP-SMH+
RWP-SMH series offer helical rotor submersible solar water pumps.
Type
Submersible.
Series
RWP-SMH: Stainless steel 304.
RWP-SMH+: Stainless steel 316.
0
RWP-SMH series offer helical rotor submersible solar water pumps.
Type
Submersible.
Series
RWP-SMH: Stainless steel 304.
RWP-SMH+: Stainless steel 316.
| Model | Inches | V (v) | Power (w) | Max Flow (m3/h) | Max Head (m) | Outlet (inch) | Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 3 inch RWP-SMH | |||||||
| RWP3-0.9-32SMH | 3 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| RWP3-1.3-50SMH | 3 | 24 | 120 | 1.3 | 50 | 3/4" | 76 |
| RWP3-1.8-60SMH | 3 | 24 | 180 | 1.8 | 60 | 3/4" | 76 |
| RWP3-1.8-80SMH | 3 | 24 | 210 | 1.8 | 80 | 3/4" | 76 |
| RWP3-1.8-100SMH | 3 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| RWP3-2.1-100SMH | 3 | 48 | 450 | 2.1 | 100 | 3/4" | 76 |
| RWP3-2.1-120SMH | 3 | 48 | 540 | 2.1 | 120 | 3/4" | 76 |
| 3 inch RWP-SMH+ | |||||||
| RWP3-0.9-32SMH+ | 3 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| RWP3-1.3-50SMH+ | 3 | 24 | 120 | 1.3 | 50 | 3/4" | 76 |
| RWP3-1.8-60SMH+ | 3 | 24 | 180 | 1.8 | 60 | 3/4" | 76 |
| RWP3-1.8-80SMH+ | 3 | 24 | 210 | 1.8 | 80 | 3/4" | 76 |
| RWP3-1.8-100SMH+ | 3 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| RWP3-2.1-100SMH+ | 3 | 48 | 450 | 2.1 | 100 | 3/4" | 76 |
| RWP3-2.1-120SMH+ | 3 | 48 | 540 | 2.1 | 120 | 3/4" | 76 |
| 4 inch RWP-SMH | |||||||
| RWP4-3-60SMH | 4 | 36 | 450 | 3 | 60 | 1" | 100 |
| RWP4-2.5-80SMH | 4 | 48 | 500 | 2.5 | 80 | 1" | 100 |
| RWP4-3.6-80SMH | 4 | 48 | 750 | 3.6 | 80 | 1" | 100 |
| RWP4-4-100SMH | 4 | 72 | 1000 | 4 | 100 | 1" | 100 |
| RWP4-3.2-120SMH | 4 | 72 | 1000 | 3.2 | 120 | 1" | 100 |
| RWP4-2.5-140SMH | 4 | 72 | 1000 | 2.5 | 140 | 1" | 100 |
| 4 inch RWP-SMH+ | |||||||
| RWP4-3-60SMH+ | 4 | 36 | 450 | 3 | 60 | 1" | 100 |
| RWP4-2.5-80SMH+ | 4 | 48 | 500 | 2.5 | 80 | 1" | 100 |
| RWP4-3.6-80SMH+ | 4 | 48 | 750 | 3.6 | 80 | 1" | 100 |
| RWP4-4-100SMH+ | 4 | 72 | 1000 | 4 | 100 | 1" | 100 |
| RWP4-3.2-120SMH+ | 4 | 72 | 1000 | 3.2 | 120 | 1" | 100 |
| RWP4-2.5-140SMH+ | 4 | 72 | 1000 | 2.5 | 140 | 1" | 100 |
