NiCd RKF12-300 (12V 300AH)
NICDCritical Power Without Compromise
Rekoser fibre structure nickel-cadmium battery. Very high currents allowed by discharge and charge with only a small nominal capacity required. Savings in volume and weight are significant. Electro-lyte replacement of the batteries is not necessary. Typical applications: emergency power supplies, switchboards and energy storage.
Main Advantages
| Nominal Voltage | 12V |
|---|---|
| Capacity (25ºC) (20HR) | 296Ah @ 5HR |
| Weight (kgs) | 10.6Kg kg |
| Terminal | Nickel-plated copper with extremely low resistance |
| Dimensions (mm) | 115mmx194mmx309mm |
12+
LONG LIFE DESIGN
EUROBAT
* EUROBAT CLASSIFICATION.
YEARS
WARRANTY
* Subject to charge and temperature parameters stipulated in this datasheet.
Main Applications
Quality Standards
NiCd RKF12-300 (12V 300AH)
NICDGraphics (25°C)
Constant Discharge Ratings (A) at 25ºC
| F.V / Time | 1SEC | 5SEC | 1MIN | 5MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|---|---|
| 1.14 V | 552A | 516A | 429A | 319A | 170A | 153A | 74.1A | 47.8A | 25.3A |
| 1.10 V | 595A | 562A | 493A | 402A | 217A | 190A | 86.8A | 55.2A | 29.6A |
| 1.05 V | 630A | 609A | 552A | 482A | 254A | 221A | 92.6A | 57.6A | 30.8A |
| 1.00 V | 699A | 677A | 626A | 569A | 297A | 248A | 96.2A | 59.2A | 31.6A |
Constant Discharge Ratings (W) at 25ºC
| F.V / Time | 1SEC | 5SEC | 1MIN | 5MIN | 30MIN | 1HR | 3HR | 5HR | 10HR |
|---|---|---|---|---|---|---|---|---|---|
| 1.14 V | W | W | W | W | W | W | W | W | W |
| 1.10 V | W | W | W | W | W | W | W | W | W |
| 1.05 V | W | W | W | W | W | W | W | W | W |
| 1.00 V | W | W | W | W | W | W | W | W | W |

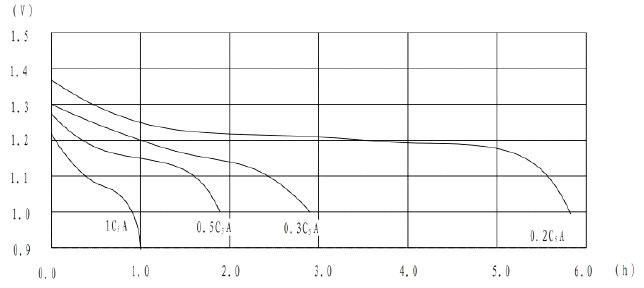

DISCHARGE CHARACTERISTIC 25ºC
NiCd RKF12-300 (12V 300AH)
NICDSpecifications
| Voltage | 12V |
|---|---|
| Capacity (25ºC) | 296Ah @ 5HR |
| Cell number | 10 cells of 1.2V |
| Charge Voltage (25°C) | Cycle - 1.0-1.2V Float - 1.38V +-0.01V |
| Max. Charge Current | |
| Max. Charge Current | |
| Internal Resistance | Approx. 0.00034-0.00036 Ω |
| Self Discharge | >=120Ah 1 month |
| Capacity Affected by Temperature |
Construction
| Component | Material |
|---|---|
| Positive | Nickel oxide-hydroxide |
| Negative | Cadmium |
| Container | ABS/PP |
| Cover | ABS/PP |
| Sealant | - |
| Safety Valve | Rubber |
| Terminal | Nickel- Clad Steel |
| Separator | - |
| Electrolyte | Potassium Hydroxide |
NiCd RKF12-300 (12V 300AH)
NICD
- Length: 115mm mm
- Width: 194mm mm
- Height: 309mm mm
- Weight (kgs): 10.6Kg kg
- Cycle - 1.0-1.2V
- Float - 1.38V +-0.01V
Specialized Technical Support
Rekoser offers consulting services for the dimensioning of critical systems, racks, battery monitoring.
