Gel Deep Cycle Batteries RKG

RKG Series provides superior performance in both high cycling and floating applications. By combining the newly developed Nano Gel electrolyte with high density paste, the RKG series offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel.

Also available with Front Terminal for telecommunication applications.

Range:
2V, 6V, 12V from 0.8Ah to 3000Ah

Designed life:
12 years full maintenance free design life.

Ask quotation

Features

Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Wide operating temperature range from -20°C to 55°C
Lower internal Resistance and high Power Density
Thick plate with high Tin low Calcium alloy for long service life in Deep Cycle Applications
Very good deep cycle performance. Up to 400 cycles @100% DOD
Excellent deep discharge recovery capability

Applications

Off-grid photovoltaic aplications
Wind applications
Hydro power applications.

Downloads

Catalog Warranty CE Declaration of Conformity Use and maintenance guide

Graphics

CHARGE CHARACTERISTICS

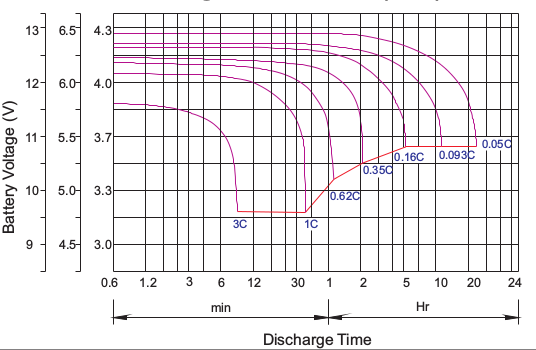

DISCHARGE CHARACTERISTIC 25oC

SELF DISCHARGE CHARACTERISTICS

FLOAT VOLTAGE VS FLOAT LIFE

Specifications

Code	Model	Nominal Voltage (V)	Capacity (Ah)	External Dimension (mm)				Terminal	Weight (Kg)	Download
Code	Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	Terminal	Weight (Kg)	Download
RKG0200500	RKG2-50	2V	50Ah @ 10HR	160	49	166	166	F13	3
RKG0201000	RKG2-100	2V	100Ah @ 10HR	171	72	206	211	F10	6
RKG0201500	RKG2-150	2V	150Ah @ 10HR	172	102	205	227	F10	8
RKG0202000	RKG2-200	2V	200Ah @ 10HR	173	111	330	364	F10	13
RKG0202500	RKG2-250	2V	250Ah @ 10HR	173	111	330	364	F10	13
RKG0203000	RKG2-300	2V	300Ah @ 10HR	171	151	330	364	F10	18.5
RKG0204000	RKG2-400	2V	400Ah @ 10HR	210	176	330	367	F10	25.5
RKG0205000	RKG2-500	2V	500Ah @ 10HR	241	175	330	365	F10	31
RKG0206000	RKG2-600	2V	600Ah @ 10HR	302	175	330	367	F10	35.5
RKG0208000	RKG2-800	2V	800Ah @ 10HR	410	175	330	367	F10	51
RKG0210000	RKG2-1000	2V	1000Ah @ 10HR	475	175	330	367	F10	61
RKG0212000	RKG2-1200	2V	1200Ah @ 10HR	475	175	330	367	F10	66
RKG0215000	RKG2-1500	2V	1500Ah @ 10HR	400	350	345	382	F10	93
RKG0220000	RKG2-2000	2V	2000Ah @ 10HR	490	350	345	382	F10	121
RKG0225000	RKG2-2500	2V	2500Ah @ 10HR	490	350	345	382	F10	138
RKG0230000	RKG2-3000	2V	3000Ah @ 10HR	710	350	345	382	F10	180
RKG0601000	RKG6-100	6V	100Ah @ 10HR	195	170	207	210	F11	15.5
RKG0601800	RKG6-180	6V	180Ah @ 10HR	306	168	226	226	F13	27.5
RKG0602000	RKG6-200	6V	200Ah @ 10HR	306	168	226	226	F13	30.0
RKG0602200	RKG6-220	6V	220Ah @ 10HR	243	187	253	276	F12	32.0
RKG0602250	RKG6-225	6V	225Ah @ 10HR	320	176	225	229	F12	32.0
RKG0603000	RKG6-300	6V	300Ah @ 10HR	295	178	345	350	F12	46.0
RKG1200330	RKG12-33	12V	33Ah @ 10HR	195	130	155	168	F11	10.2
RKG1200380	RKG12-38	12V	38Ah @ 10HR	197	165	170	170	F11	12.3
RKG1200400	RKG12-40	12V	40Ah @ 10HR	197	165	170	170	F14	13
RKG1200450	RKG12-45	12V	45Ah @ 10HR	197	165	170	170	F11	14.0
RKG1200500	RKG12-50	12V	50Ah @ 10HR	229	138	208	212	F11	16.0
RKG1200550	RKG12-55	12V	55Ah @ 10HR	229	138	208	212	F11	17.0
RKG1200600	RKG12-60	12V	60Ah @ 10HR	260	168	211	216	F11	20.0
RKG1200650	RKG12-65	12V	65Ah @ 10HR	350	167	179	179	F11	20.5
RKG1200700	RKG12-70	12V	70Ah @ 10HR	260	166	211	216	F11	22.0
RKG1200750	RKG12-75	12V	75Ah @ 10HR	260	169	208	212	F11	22.5
RKG1200800	RKG12-80	12V	80Ah @ 10HR	350	167	179	179	F11	23.0
RKG1200900	RKG12-90	12V	90Ah @ 10HR	306	169	208	212	F14	26.5
RKG1200950	RKG12-95	12V	95Ah @ 10HR	328	171	214	220	F12	28.0
RKG1201000	RKG12-100	12V	100Ah @ 10HR	328	171	214	220	F14	30.0
RKG1201200	RKG12-120	12V	120Ah @ 10HR	410	176	227	227	F12	34.0
RKG1201340	RKG12-134	12V	134Ah @ 10HR	342	172	273	277	F12	42.0
RKG1201350	RKG12-135	12V	135Ah @ 10HR	342	172	273	277	F12	42.0
RKG1201500	RKG12-150	12V	150Ah @ 10HR	485	172	240	240	F13	46.0
RKG1201800	RKG12-180	12V	180Ah @ 10HR	530	207	218	222	F12	53
RKG1201800FT	RKG12-180FT	12V	180Ah @ 10HR	560	126	316	316	M8	56.0
RKG1202000	RKG12-200	12V	200Ah @ 10HR	522	238	218	222	F13	60.0
RKG1202200	RKG12-220	12V	220Ah @ 10HR	522	238	218	222	F12	63
RKG1202250	RKG12-225	12V	225Ah @ 10HR	522	238	218	222	F13	64
RKG1202300	RKG12-230	12V	230Ah @ 10HR	520	269	203	208	F12	66
RKG1202500	RKG12-250	12V	250Ah @ 10HR	520	269	220	220	F12	71
RKG1202600	RKG12-260	12V	260Ah @ 10HR	520	269	220	22	F13	72
