OPzS Batteries

OPzS Batteries RKS

RKS is the OPzS series from Rekoser, a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency and reliability for the widest variety of applications.

This series is highly suited for all standby power applications that require the highest levels of reliability and security.

Range:
2V, 12V from 50Ah to 3300Ah

Designed life:
20 years design life according to the standard IEC60896-11.

Rekoser Rekoser batteries

Features

  • Capacity 50 to 3300 AH
  • Virgin lead plates w. copper alloy terminal inserts (low resistance)
  • Wider operating temperature: -4°F to 131°F (-20°C to 55°C)
  • SAN transparent container (Optional Flame Retardent Cover to UL94V-0 Available)
  • Easy Installation in standard or seismic racks
  • Designed for Critical Telecom Applications - 20 year design life
  • 100% initial capacity
  • IEC 60896-11 certified

Applications

  • Solar energy systems
  • Telecom business
  • Railways
  • Electricity cabins
  • Uninterruptible power supplies (UPS)
  • Electricity and nuclear power plants
  • Wind energy applications

Graphics

CHARGE CHARACTERISTICS


DISCHARGE CHARACTERISTIC 25oC

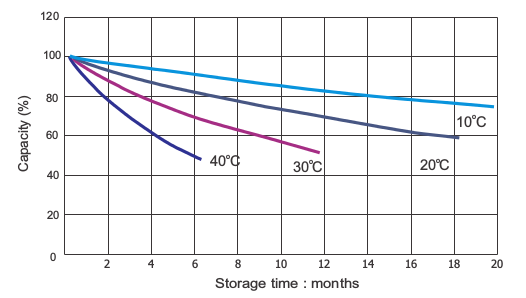

SELF DISCHARGE CHARACTERISTICS


FLOAT VOLTAGE VS FLOAT LIFE


CYCLE DISCHARGE VOLTAGE CURVE (Test standard BS EN 61427:2005)


Specifications

CodeModelNominal Voltage
(V)
Capacity
(Ah)
External Dimension (mm)TerminalWeight
(Kg)
Download
LengthWidthHeightTotal Height
RKS0201000RKS2-1002V100Ah @ 10HR103206354409F10w/o electrolyte: 8.5
RKS0201500RKS2-1502V150Ah @ 10HR103206354409F10w/o electrolyte: 10.5
RKS0202000RKS2-2002V200Ah @ 10HR103206354409F10w/o electrolyte: 13
RKS0202500RKS2-2502V250Ah @ 10HR124206354409F10w/o electrolyte: 16
w/ electrolyte: 21
RKS0203000RKS2-3002V300Ah @ 10HR145206354409F10w/o electrolyte: 17.5
w/ electrolyte: 24.5
RKS0203500RKS2-3502V350Ah @ 10HR124206470525F10w/o electrolyte: 20
w/ electrolyte: 27
RKS0204200RKS2-4202V420Ah @ 10HR145206470525M8w/o electrolyte: 24.5
w/ electrolyte: 33
RKS0205000RKS2-5002V500Ah @ 10HR166206470525F10w/o electrolyte: 25.6
w/ electrolyte: 36
RKS0206000RKS2-6002V600Ah @ 10HR145206645700F10w/o electrolyte: 31.0
w/ electrolyte: 43.0
RKS0208000RKS2-8002V800Ah @ 10HR191210645700F10w/o electrolyte: 44.0
w/ electrolyte: 60.0
RKS0210000RKS2-10002V1000Ah @ 10HR233210645700F10w/o electrolyte: 52
RKS0212000RKS2-12002V1200Ah @ 10HR275210645700F10w/o electrolyte: 61.5
w/ electrolyte: 83.7
RKS0215000RKS2-15002V1500Ah @ 10HR275210795850M8w/o electrolyte: 75
w/ electrolyte: 105
RKS0220000RKS2-20002V2000Ah @ 10HR399210771826M8w/o electrolyte: 108
w/ electrolyte: 150
RKS0225000RKS2-25002V2500Ah @ 10HR487212771826F10w/o electrolyte: 130
w/ electrolyte: 183
RKS0230000RKS2-30002V3000Ah @ 10HR576212771826F10w/o electrolyte: 157
w/ electrolyte: 220
RKS0233000RKS2-33002V3300Ah @ 10HR576212771826F10w/o electrolyte: 162
w/ electrolyte: 225
RKS0602600RKS6-2606V260Ah @ 20HR260280248279.5F10w/o electrolyte: 22
w/ electrolyte: 29
RKS1200500RKS12-5012V50Ah @ 10HR260168211826F11with electrolyte: 20
RKS1201000RKS12-10012V100Ah @ 10HR409176225225F10w/ electrolyte: 42.5
RKS1201500RKS12-15012V150Ah @ 10HR522238218218F10w/o electrolyte: 52.5
RKS1202000RKS12-20012V200Ah @ 10HR522269220220F12w/o electrolyte: 69.5
RKS1202200RKS12-22012V220Ah @ 10HR522269220220F12w/ electrolyte: 73.5
